Fanless industrial box PC Telestar JL-02-392S-X for electrical cabinet
Fanless industrial box PC Telestar JL-02-392S-X for electrical cabinet
1124,25 €
Tax excl.
€1,371.59 Iva incl.
Reference TBJL02392S5860Q
Delivered in 2/3 working days
Easy and free returns, within 14 days
Easy and free returns, within 14 days
Terms and conditions
Shipping Policies
Legal notes
FAQ

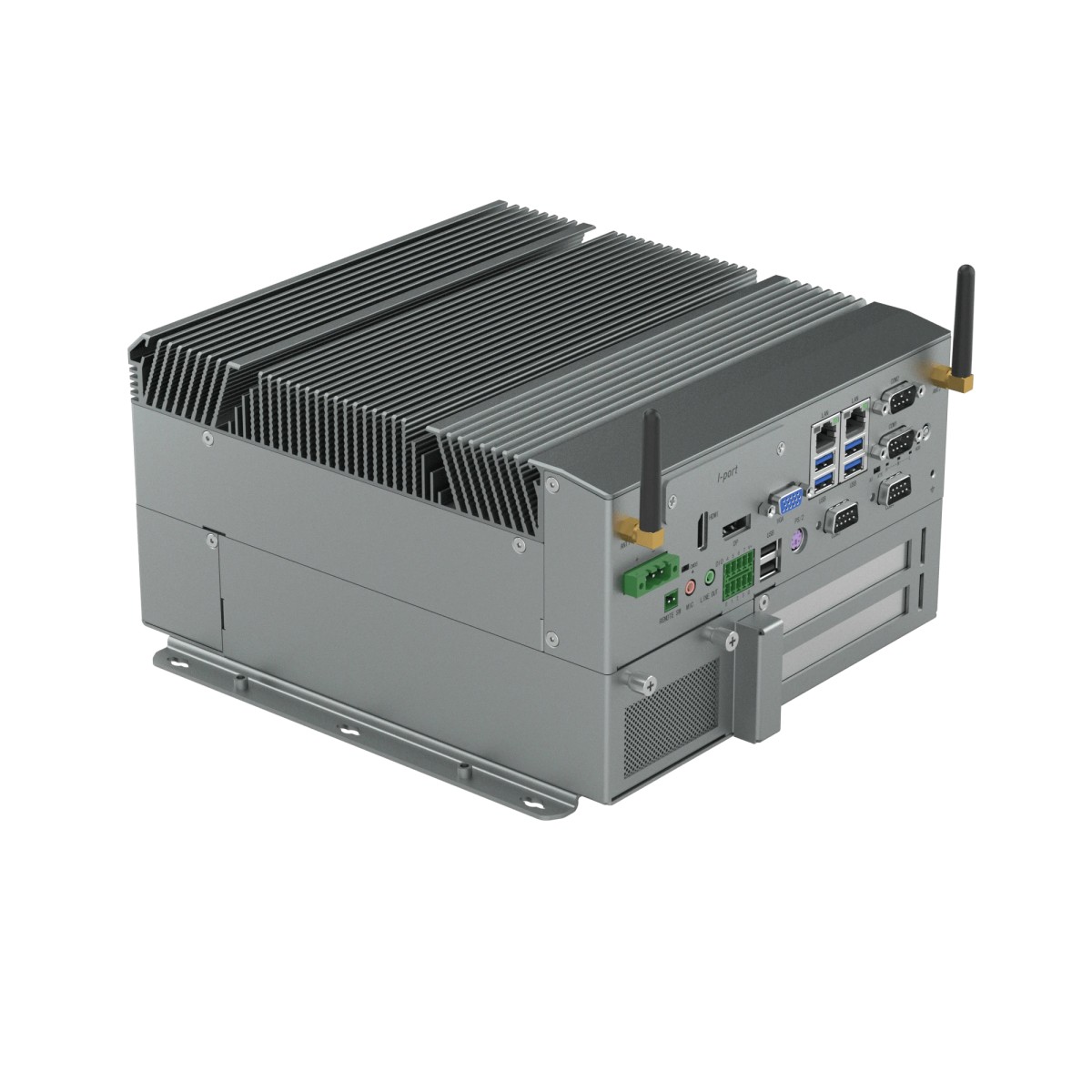

Telestar JL-02-392S-X fanless industrial Box PC for electrical cabinet
Telestar JL-02-392S-X fanless industrial Box PC for book-type mounting in electrical cabinets, featuring Intel CPU, triple independent video outputs and RAID storage for automation and IoT server applications.
Main features
- Fanless industrial Box PC family JL-xx-391x/392x for control, supervision and data logging.

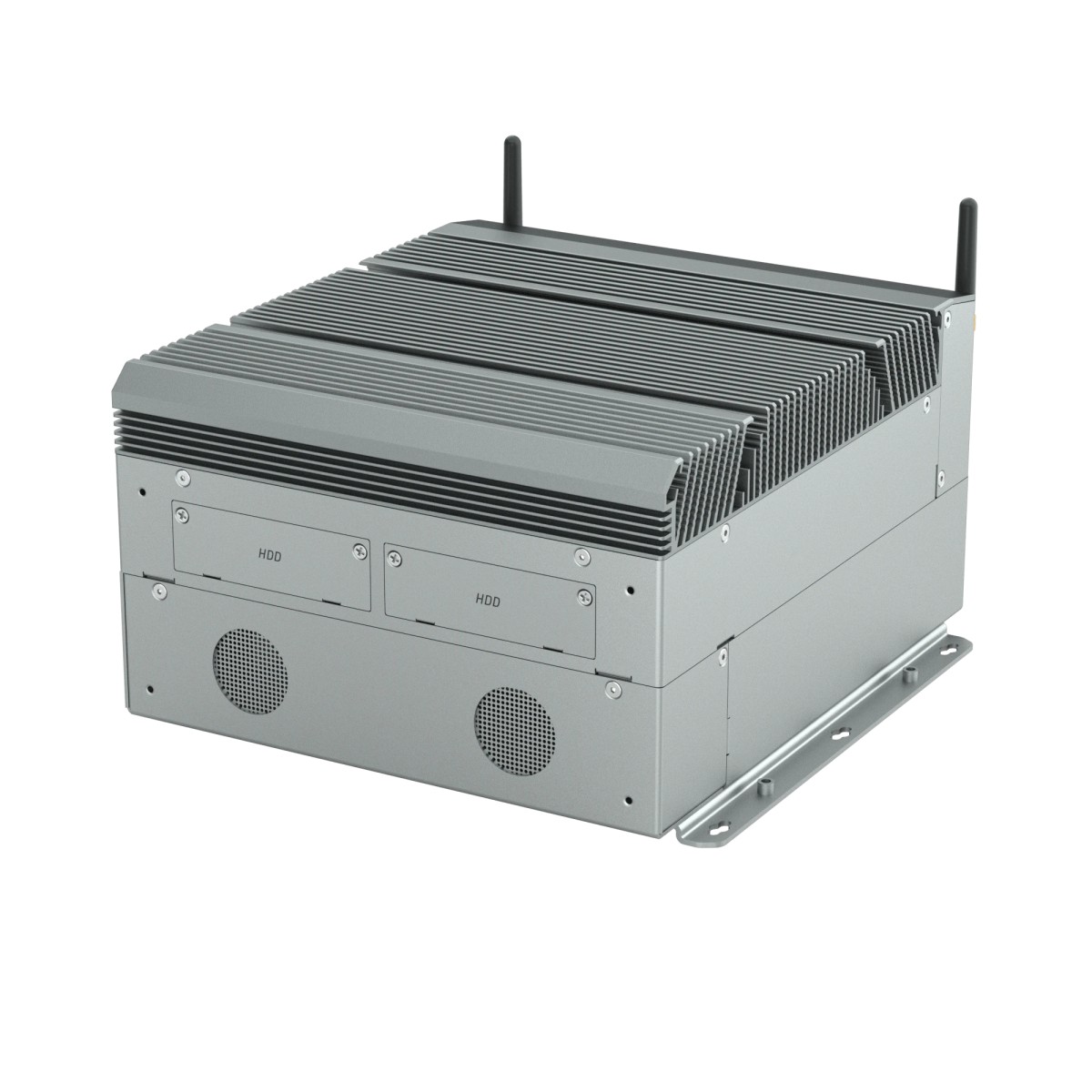

- Steel/aluminium chassis resistant to shock and vibration for harsh industrial environments.
- Easy installation and maintenance with book-type mounting in electrical cabinet.
- Scalable and expandable system with customizable hardware configurations.
- Excellent price/performance ratio, available in outlet with online configurator.
- Intel Pentium / Core i3 / i5 / i7 6th/7th gen processors with up to 32 GB DDR4 RAM.
- Three independent video outputs for multi-monitor HMI/SCADA layouts.

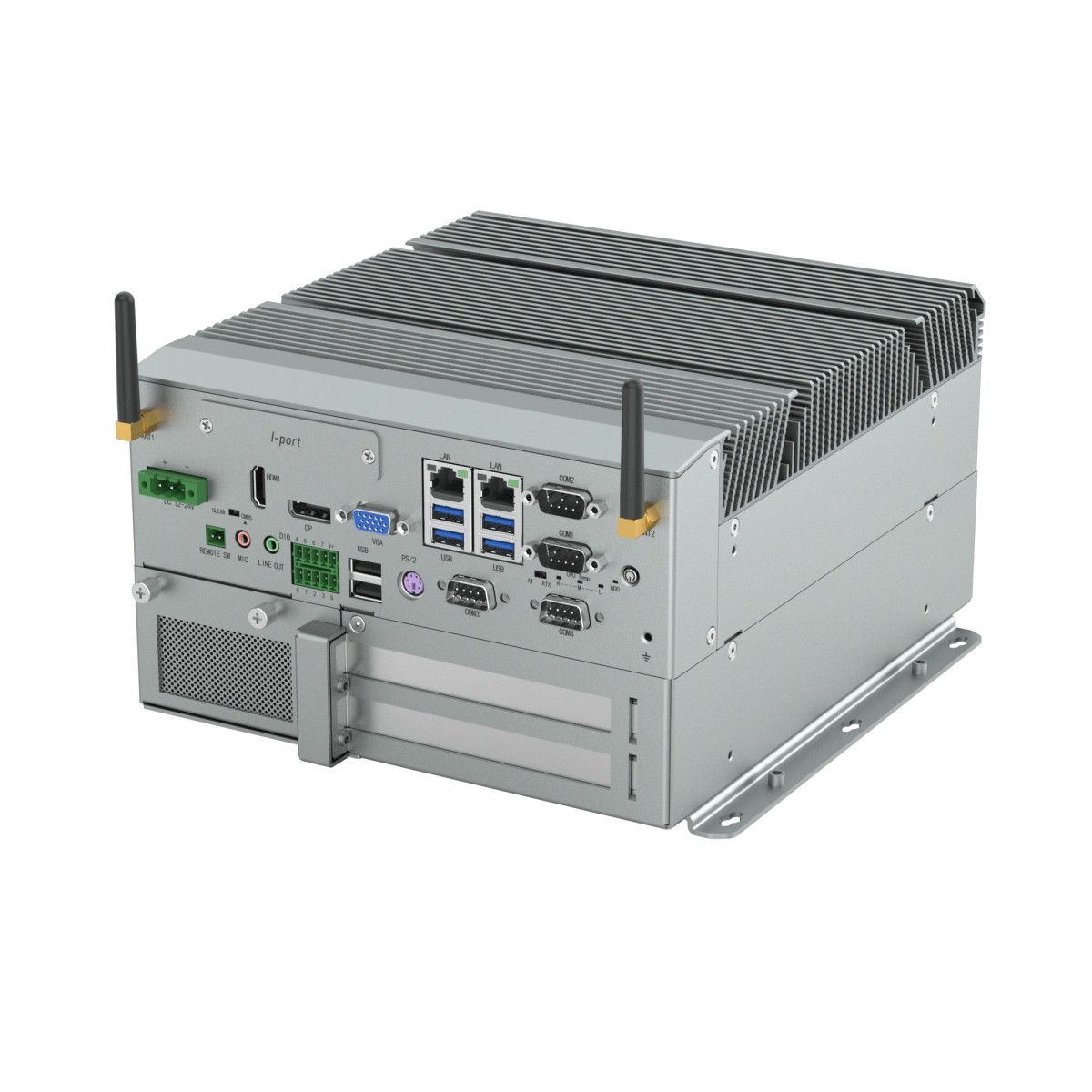

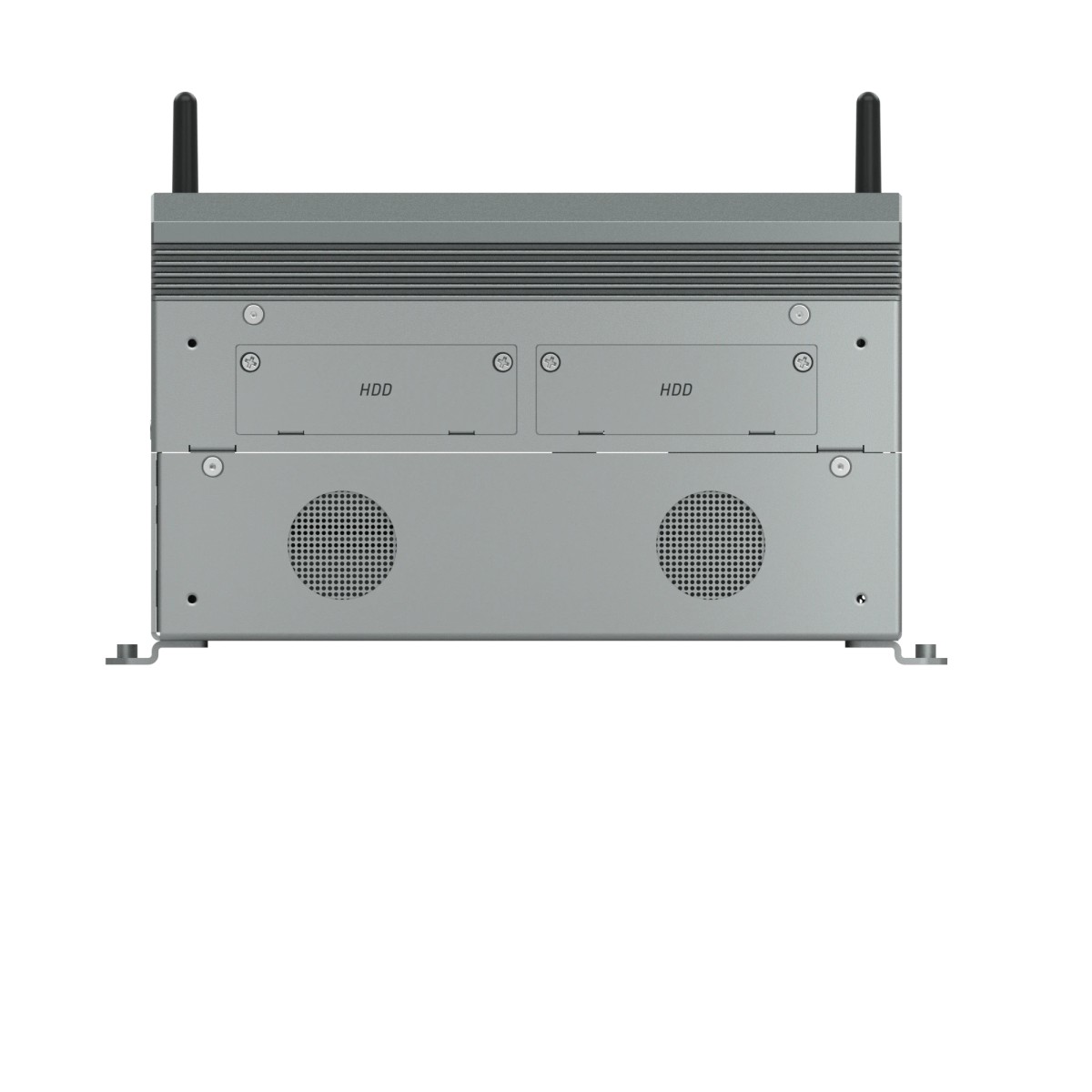

- Two removable 2.5" HDD/SSD with RAID 0/1 support plus mSATA and M.2 slots.
- Available with 2 x PCI or 2 x PCI Express expansion slots.
- 8 digital GPIO and TPM 2.0 for secure IoT applications.
- Expandable with Wi‑Fi / 4G / LTE / GPS connectivity modules.
- Extended operating temperature range from -20 °C to +65 °C.
- 12–24 VDC power input for direct integration into electrical cabinets.
Family technical overview
The JL-02-392S-X family includes fanless industrial Box PCs with Intel Pentium or Core CPUs, redundant storage and rich I/O, designed for 24/7 automation environments.
- CPU: Intel Pentium / Core i3 / i5 / i7 (6th/7th generation, depending on model).
- RAM: up to 32 GB DDR4.
- Storage: 2 x 2.5" removable SATA (RAID 0/1) + mSATA slot + M.2 slot.

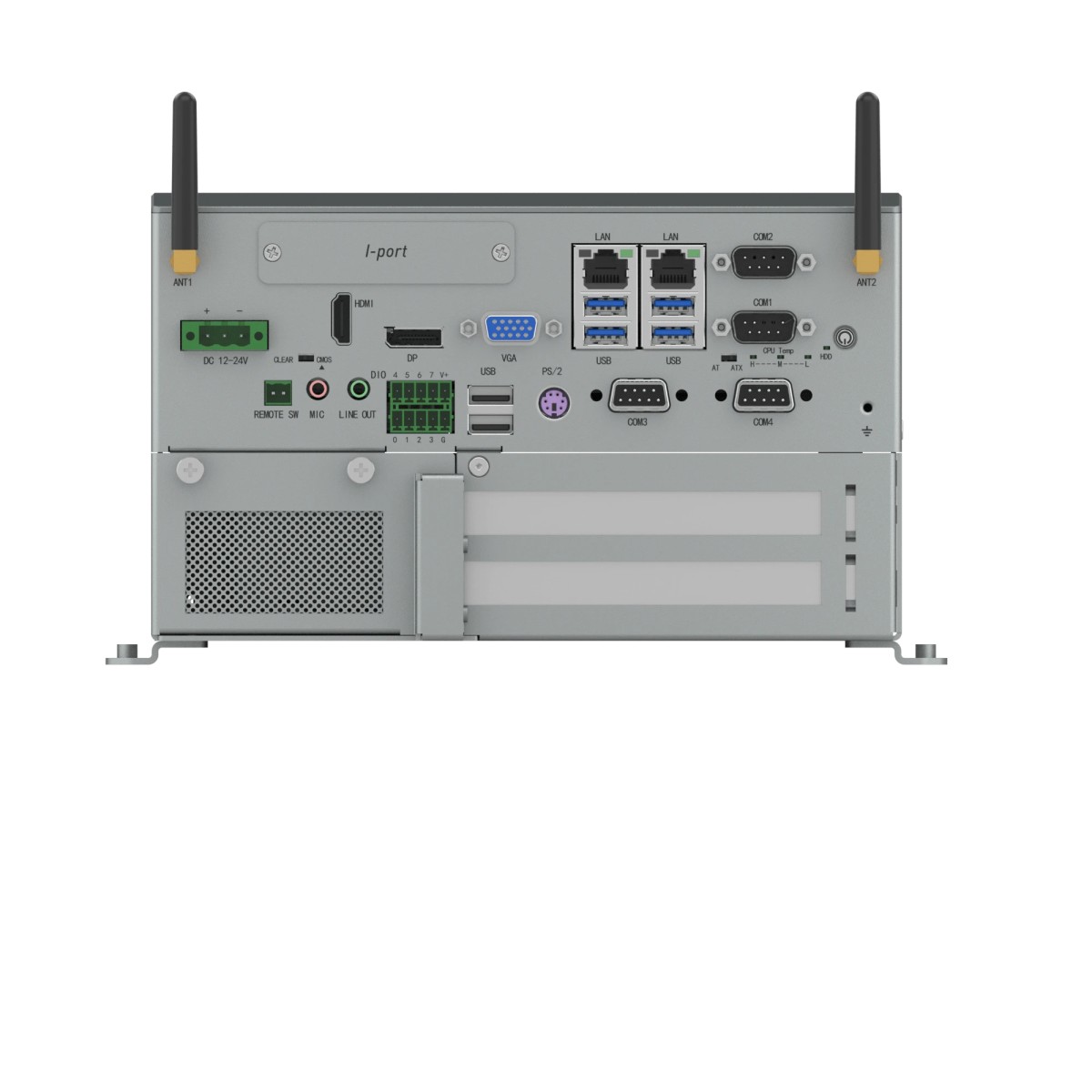

- Network: 2 x Gigabit Ethernet ports.
- Serial: 2 x RS232 + 2 x RS232/RS485.
- USB: 3 x USB 2.0 + 4 x USB 3.0.
- Video: 3 independent video outputs (typically VGA, HDMI, DisplayPort).
- Expansion: 2 x PCI or 2 x PCI Express + 1 x miniPCIe (depending on version).
- Digital I/O: 8 digital GPIO lines.
- Security: integrated TPM 2.0 and internal USB port for software protection dongle.
- Power input: 12–24 VDC.
- Operating temperature: -20 °C to +65 °C.
Typical applications
- Automation and control of industrial machines and production lines.
- IoT data collection servers, MES and production traceability.
- HMI/SCADA supervision and edge computing in industrial plants.
User benefits
- Higher reliability thanks to fanless design, robust chassis and RAID storage.
- Reduced downtime with removable drives and cabinet-friendly installation.
- Scalable performance and interfaces enabling platform reuse across plants.
Need support or a tailored configuration?
Get in touch with the Telestar team to receive technical advice on your JL-02-392S-X industrial Box PC.
Contact us for info and quotation
TBJL02392S5860Q
1 Items
- Potenza mototrre
- 12-24 VDC
- Ethernet ports number:
- 2 X ETH
- Serial ports number:
- 2x RS2323 - 2 x RS232/485
- Processor
- Core i3-6100T Dual-core 3
Core i5-6500T Quad-core 3 - Mounting
- DIN Rail Installation or Wall Mounting
- Usb ports:
- 3 x USB 2.0 - 4 x USB 3.0
- Video outputs
- 1 x VGA - 1 x HDMI - 1 x Display Port
- Expansions
- 2 x PCIe - 1 x miniPCIe
- Temperature range
- from -20 to +65
- Operating system
- Windows 10 IoT Enterprise 2019 LTSC High End 64 bit
- Configurable
- Yes
