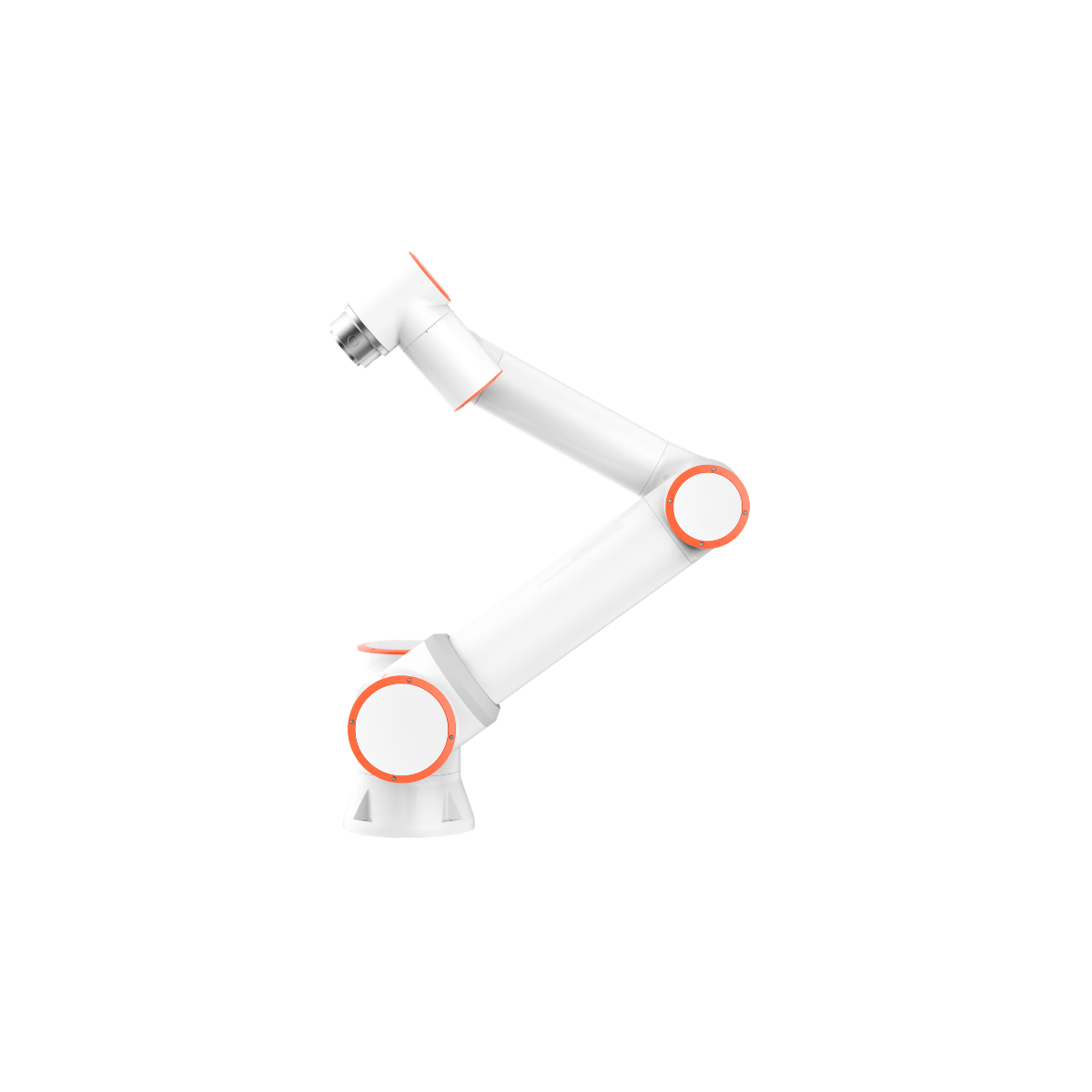

Fairino Cobot FR16

Fairino Cobot FR16

The Fairino Cobot FR16 is engineered for applications requiring high payload (16kg, max 20kg) within a more concentrated 1034mm reach. This makes it the perfect choice for heavy assembly tasks where torque and lifting capacity are more critical than long-distance reach.

With an impressive repeatability of ±0.03mm, the Fairino Cobot FR16 provides industrial-grade accuracy for heavy-part handling. It excels in applications like heavy-duty screwdriving, part insertion, and precision welding where stability is paramount.

The 190mm footprint allows the Fairino Cobot FR16 to be installed in tight production cells where traditional heavy robots wouldn't fit. Its ability to operate in any orientation adds further flexibility to complex manufacturing.

Like the rest of the Fairino collaborative robot range, the FR16 combines powerful performance with user-friendly operation. Its open-source software architecture enable seamless integration with PLCs, vision systems, end-of-arm tooling, and other factory automation equipment. This flexibility allows businesses to deploy the robot quickly and ensure 24/7 operations across a wide variety of industrial applications.

• Payload: 16kg
• Reach: 1034mm
• Repeatability: ±0,03mm
• Weight: 40kg
• IP rating: IP54
• Footprint: 190mm
• Degrees of Freedom: 6 DOF
• Max TCP Speed: 1m/s
• Power Consumption: 310W
• Noise level: max 65dB
• Materials: aluminium, steel
