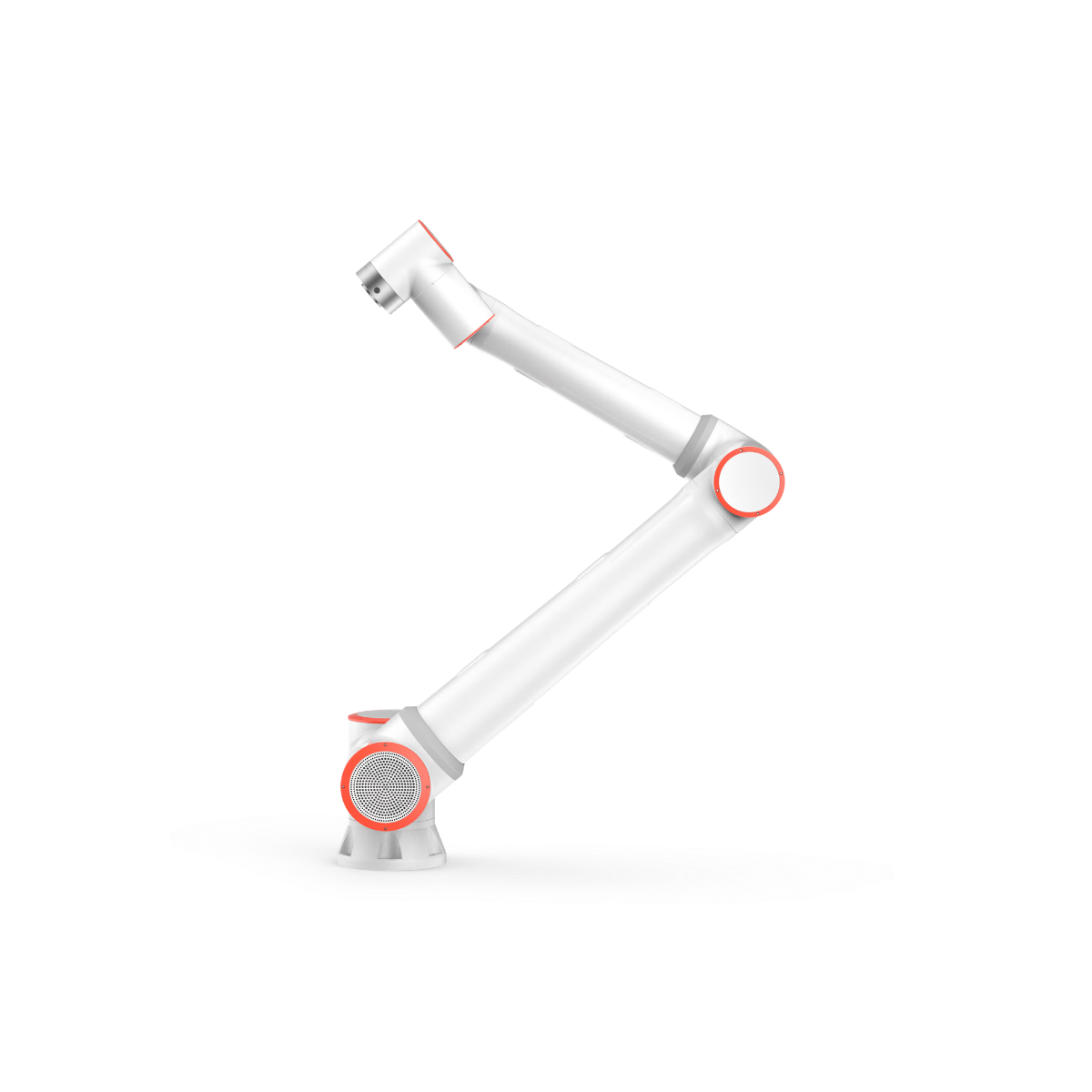

Fairino Cobot FR20

Fairino Cobot FR20

The Fairino Cobot FR20 is the largest cobot in the Fairino family, boasting an incredible reach of 1854mm. Combined with a 20kg payload (max 25kg), it is specifically designed to replace traditional industrial robots in large-scale palletizing, material handling, and wide-area welding.

With TCP speeds of up to 2m/s, the Fairino Cobot FR20 is built for speed. It allows for rapid palletizing cycles, significanty increasing throughput in logistics and end-of-line packaging operations while maintaining a repeatability of ±0.1mm.

At 105kg, the Fairino Cobot FR20 provides the mass and stability needed for its impressive reach. Like its smaller siblings, it remains fully collaborative, featuring advanced safety systems that allow it to operate safely near humans, even when handling substantial loads.

The FR20 is also designed for quick deployment and easy integration into existing production lines. Its open software architecture, intuitive programming interface, and compatibility with major industrial communication protocols simplify integration with PLCs, vision systems, conveyors, grippers and other automation equipment.

• Payload: 20kg
• Reach: 1854mm
• Repeatability: ±0,1mm
• Weight: 105kg
• IP rating: IP54
• Footprint: 250mm
• Degrees of Freedom: 6 DOF
• Max TCP Speed: 2m/s
• Power Consumption: 620W
• Noise level: max 70dB
• Materials: aluminium, steel
