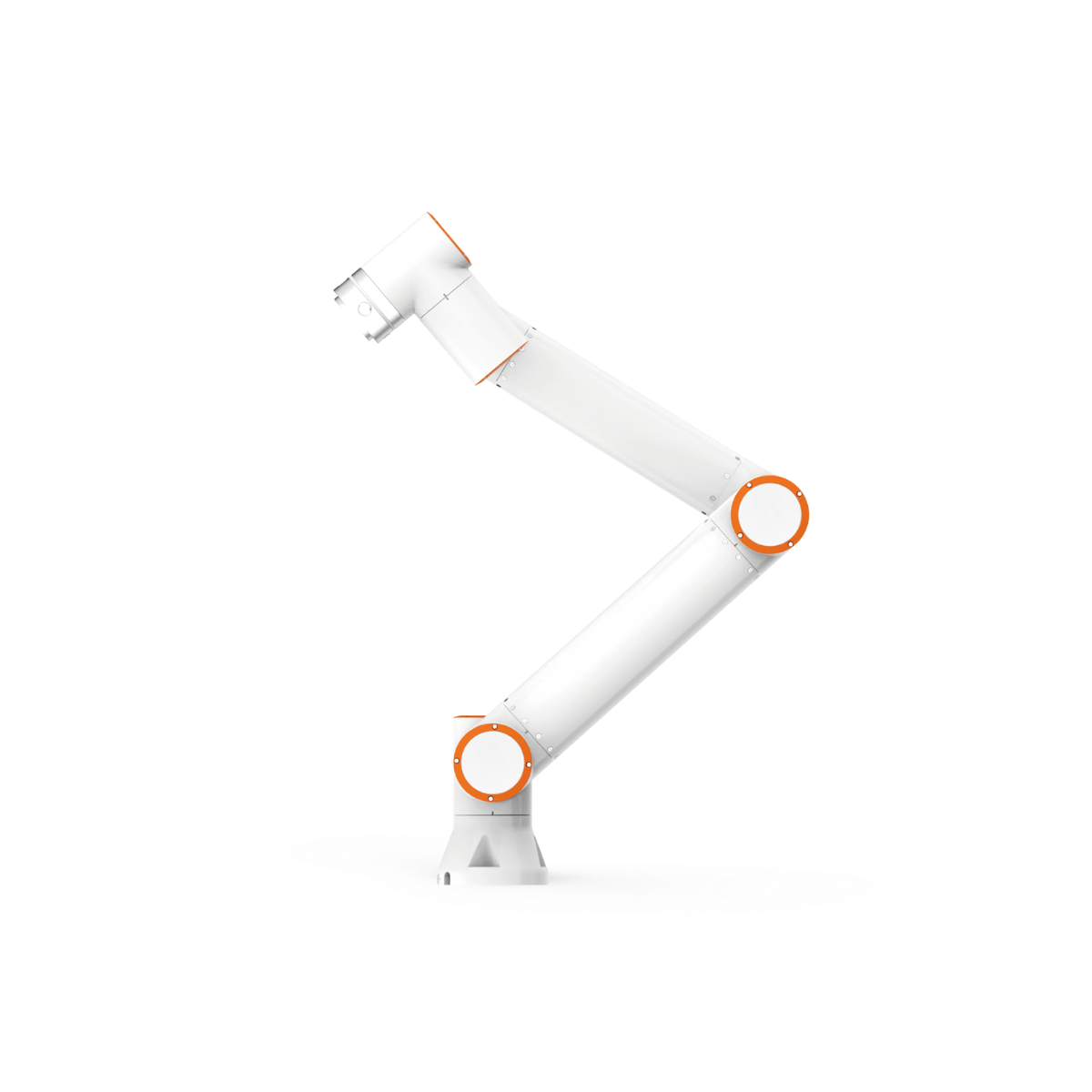

Fairino Cobot FR3-WML

Fairino Cobot FR3-WML

Fairino Cobot FR3-WML bridges the gap between small-scale cobots and long-reach industrial arms. With a reach of 922mm and a 3kg payload, it is designed for tasks that require navigating larger working envelopes while handling delicate components with a repeatability of ±0,05mm.

Its slender arm and extended reach make the Fairino Cobot FR3-WML ideal for laboratory automation, where it can easily reach across multiple testing stations or deep into storage racks. With a typical power consumption of 140W, the model FR3-WML remains energy-efficient for 24/7 operations.

Weighing just 11.25kg, the Fairino Cobot FR3-WML can be easily mounted on walls or ceilings to save floor space. Like all Fairino cobots, it features intuitive control via a 10.1-inch teach pendant or web-based app, simplifying the programming of complex paths across its wide reach. By combining high-quality mechanical durability, advanced motion control capabilities, and user-friendly software, the Fairino cobot FR3-WML provides a versatile, reliable, and future-ready solution for precision automation across large working areas.

Technical data:

• Payload: 3kg
• Reach: 922mm
• Repeatability: ±0,05mm
• Weight: 11.25kg
• IP rating: IP54
• Footprint: 128mm
• Degrees of Freedom: 6 DOF
• Max TCP Speed: 1m/s
• Power Consumption: 140W
• Noise level: max 65dB
• Materials: aluminium, steel
