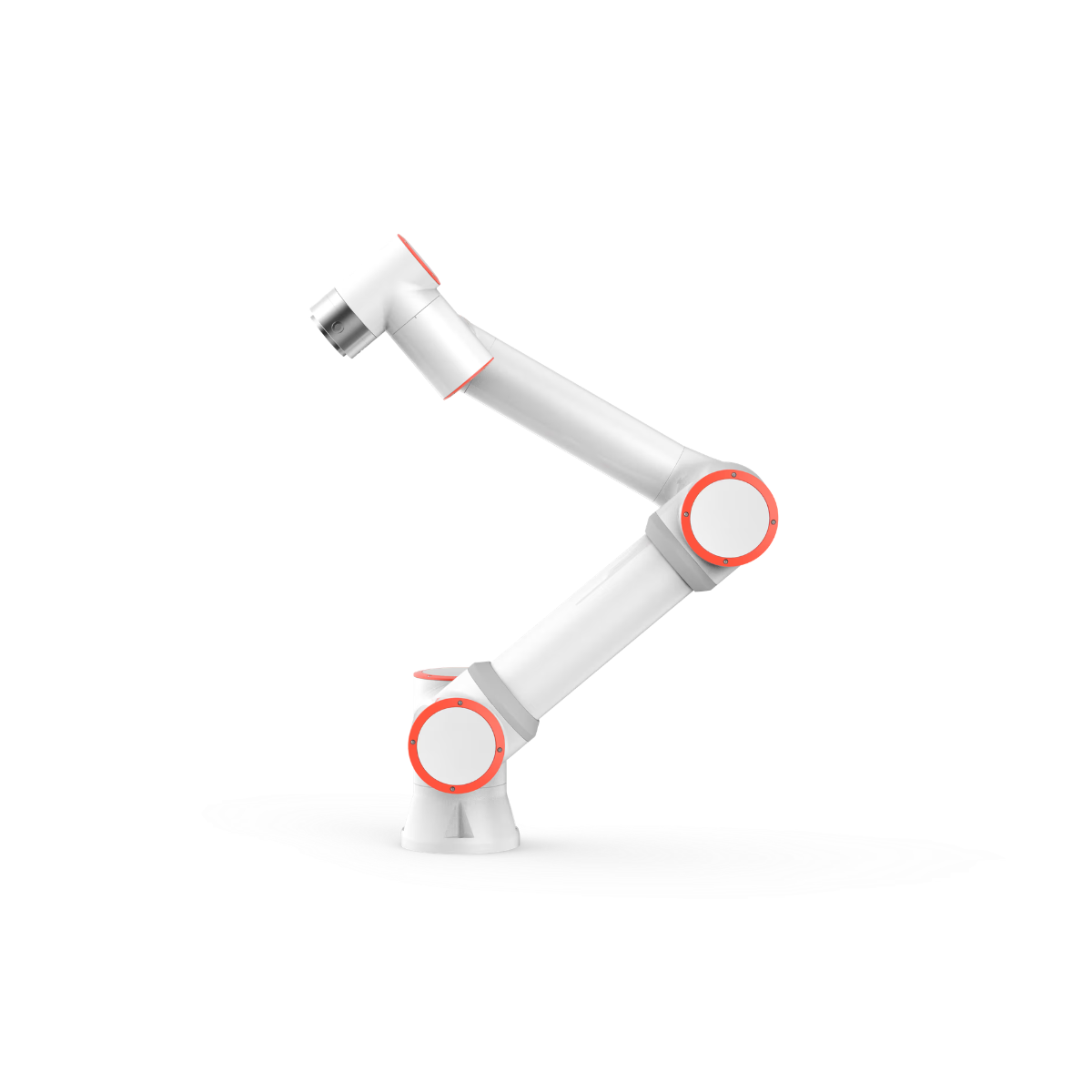

Fairino Cobot FR5

Fairino Cobot FR5

The Fairino Cobot FR5 is the versatile powerhouse of the Fairino lineup, offering an optimal balance of 5 kg payload and 922 mm reach. It is engineered to excel in assembly, pick-and-place, and machine tending, providing the speed and reliability needed for high-volume production lines.

With a repeatability of ±0.02mm, the Fairino Cobot FR5 ensures consistent quality in every cycle. Its robust aluminum and steel construction is designed for longevity in industrial environments, supported by an IP54 rating (with IP65 optional) to protect against dust and liquids.

The Fairino Cobot FR5 integrates advanced collision detection, allowing it to work safely alongside human operators without the need for bulky safety cages. Its 6-DOF flexibility and 149 mm footprint allow it to be integrated into existing workstations with minimal modification. High repeatability and sensitive force detection enable the automation of fragile elctronics and complex mechanical parts.

Technical data:

• Payload: 5kg
• Reach: 922mm
• Repeatability: 0,02mm
• Weight: 22kg
• IP rating: IP54
• Footprint: 149mm
• Degrees of Freedom: 6 DOF
• Max TCP Speed: 1m/s
• Power Consumption: 260W
• Noise level: max 65dB
• Materials: aluminium, steel
