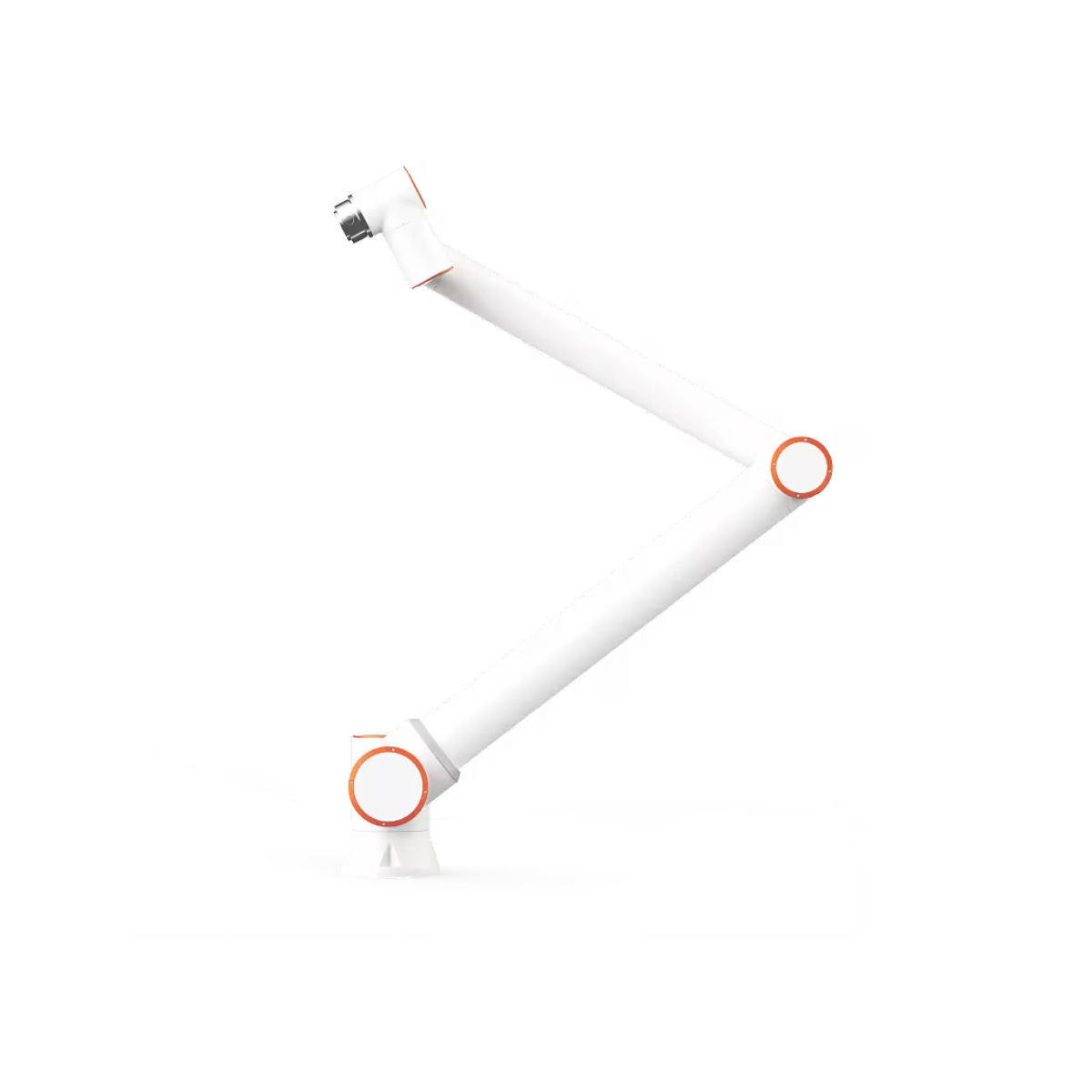

Fairino Cobot FR5-WML

Fairino Cobot FR5-WML

The Fairino Cobot FR5-WML stands out with a massive 1300 mm reach, providing one of the largest working envelopes in its payload class. This makes it uniquely suited for applications like CNC machine tending, where the cobot must reach deep into the machine tool from a safe distance.

Capable of TCP speeds up to 2 m/s, the Fairino Cobot FR5-WML is built for productivity. Despite its long arm, it maintains steady performance with a repeatability of ±0.1mm, ensuring that even distant pick-and-place points are reached with precision.

At 45 kg, the Fairino Cobot FR5-WML provides the stability required for long-reach movements. Its 190 mm footprint ensures a solid base for high-speed transitions, while the standard IP54 protection allows it to thrive in factory environments. These processes combine high-grade mechanical durability with specialized software for complex motion control.

• Class-leading 1300mm reach for large-scale operations
• High TCP speed for fast cycle times
• Ideal for CNC tending and large-part handling

Technical data:

• Payload: 5kg
• Reach: 1300mm
• Repeatability: ±0,1mm
• Weight: 45kg
• IP rating: IP54
• Footprint: 190mm
• Degrees of Freedom: 6 DOF
• Max TCP Speed: 2m/s
• Power Consumption: 270W
• Noise level: max 65dB
• Materials: aluminium, steel
