InHand IR315 industrial 4G LTE router with VPN

IR315 industrial 4G LTE router with VPN and cloud management

The InHand IR315 is a compact industrial IoT router that integrates 4G LTE cellular connectivity, optional Wi‑Fi and advanced VPN technologies to provide reliable and secure Internet access for remote and distributed applications. Its small footprint and DIN‑rail mounting make it ideal for electrical cabinets and space‑constrained installations.

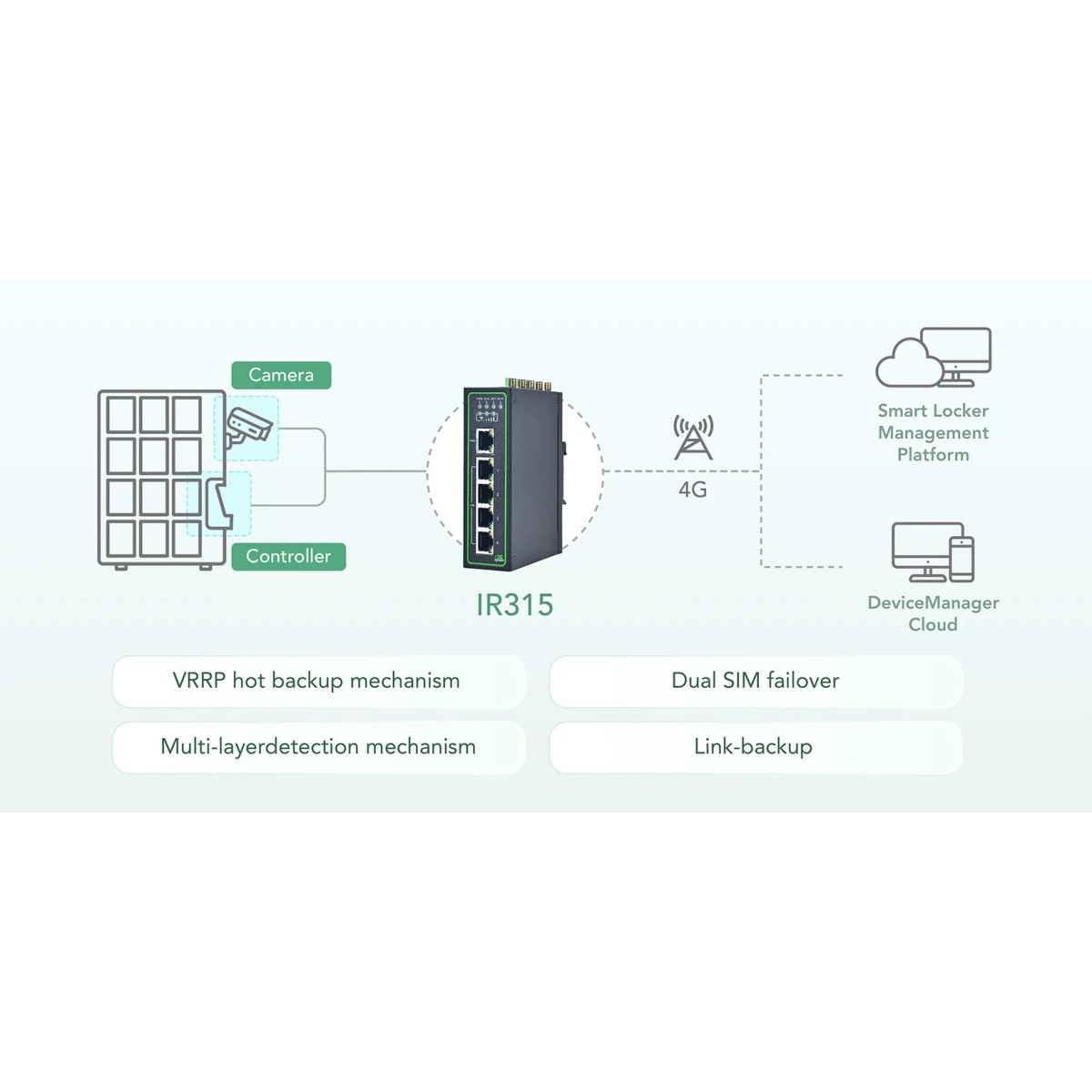

With Dual SIM support, the IR315 enables automatic failover between two cellular carriers, ensuring service continuity even if the primary network fails. The router also supports backup between wired WAN, Wi‑Fi and cellular links, delivering “always‑online” connectivity for remote plants, monitoring systems and maintenance services.

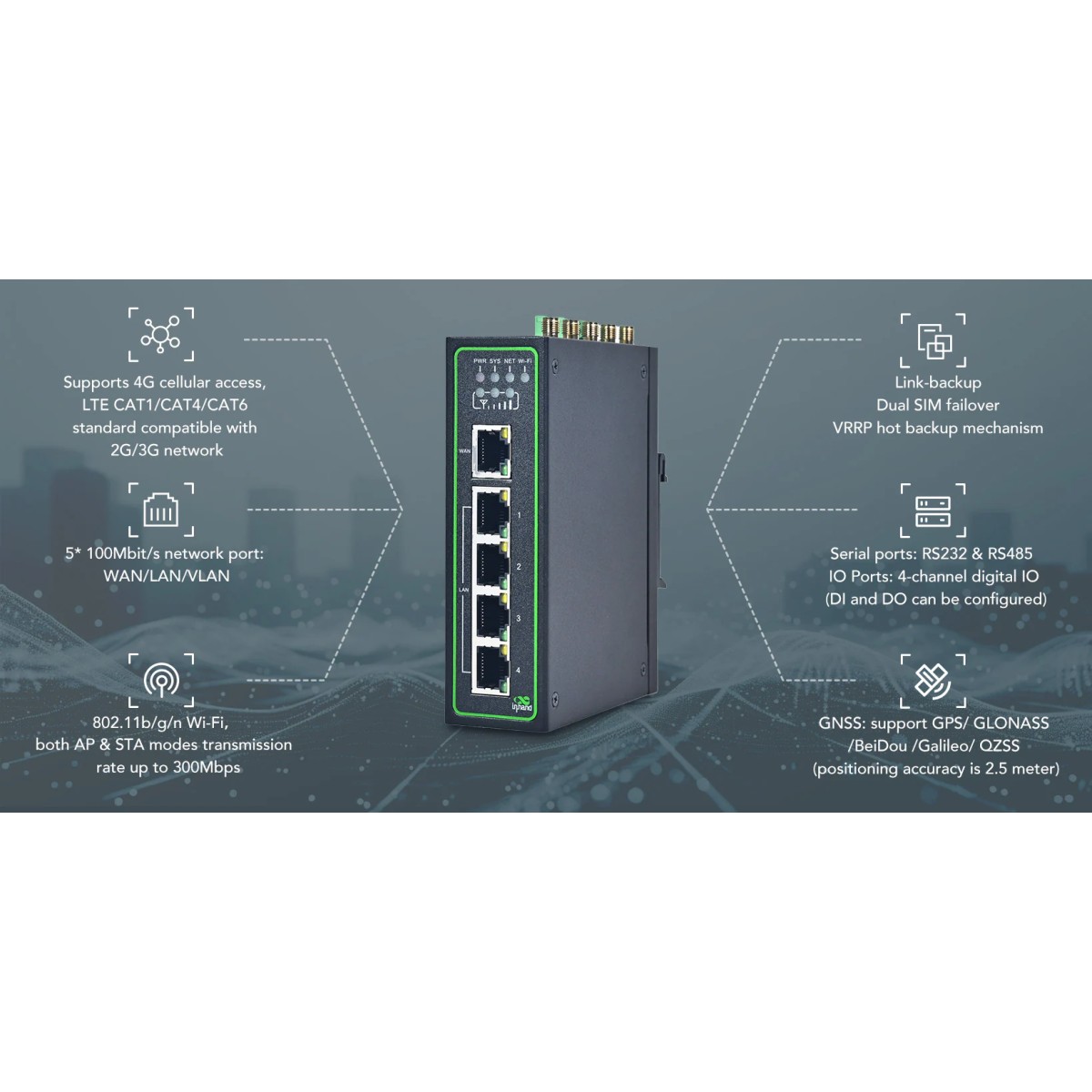

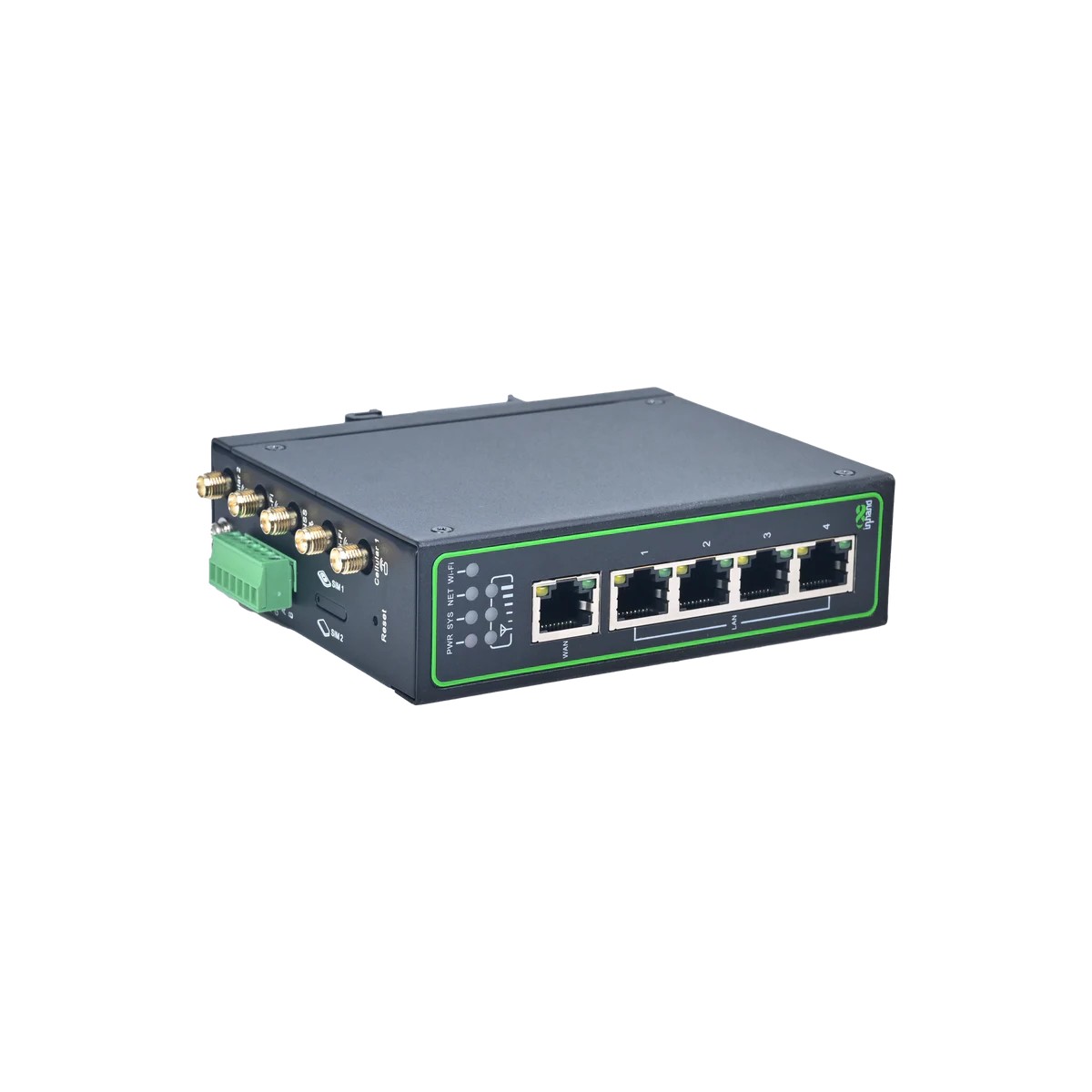

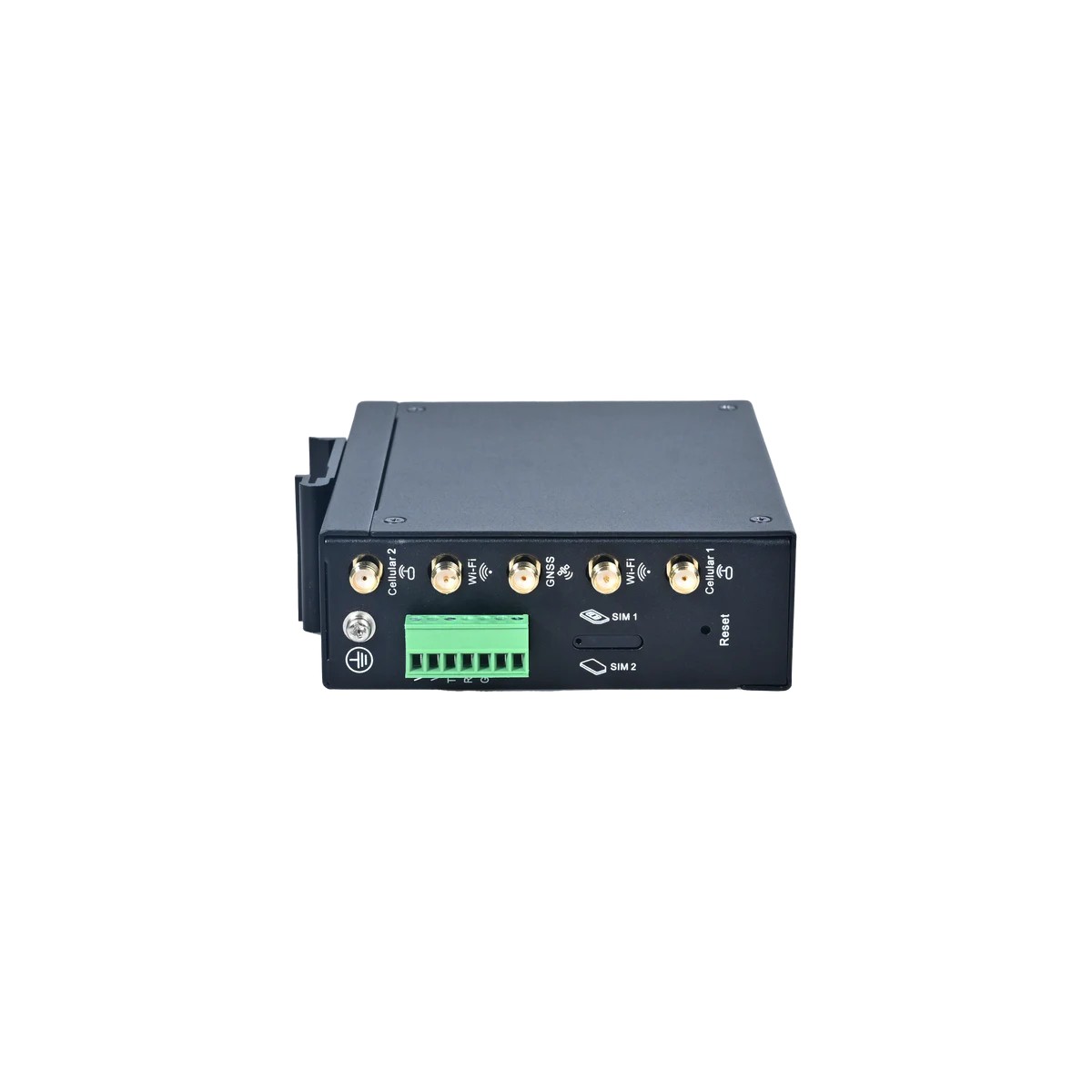

IR315 offers five Fast Ethernet ports, RS232/RS485 serial interfaces and four configurable digital I/Os, allowing easy connection of PLCs, HMIs, data loggers and other industrial equipment. The intuitive web interface simplifies configuration, while preconfigured templates help reduce deployment time in large‑scale projects.

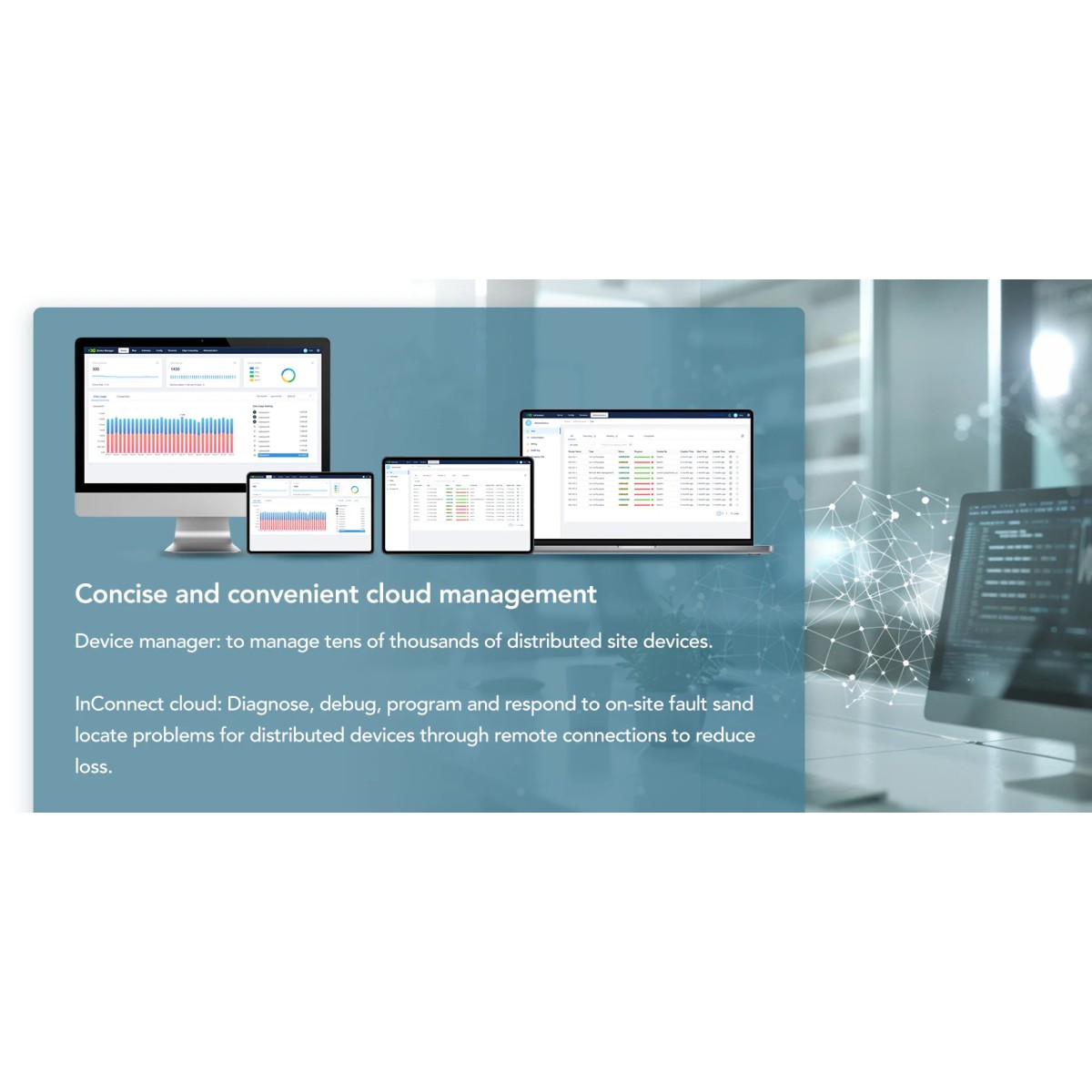

On the security side, the router features an integrated firewall, NAT, multiple VPN options (IPsec, OpenVPN, etc.), multi‑level user authentication and access control mechanisms to protect both data and networks from unauthorized access. Compatibility with InConnect and InHand Device Manager cloud platforms enables centralized management, remote diagnostics and bulk firmware updates.

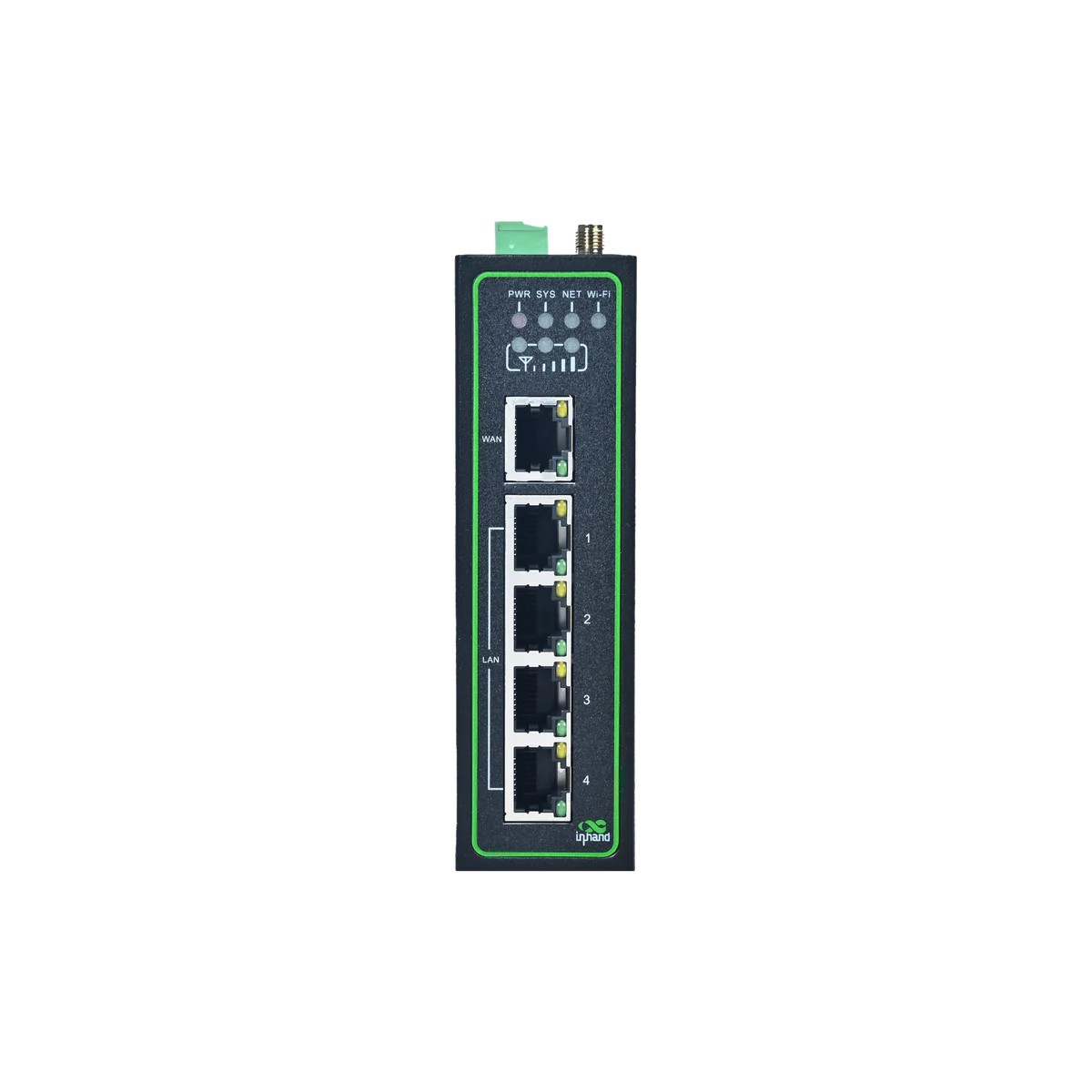

The industrial‑grade design includes a robust metal housing, fanless cooling, IP30 protection, EMC certifications and a wide operating temperature range, making the IR315 suitable for harsh environments such as factory automation, energy, transport, video surveillance and vending applications.

• Compact industrial 4G LTE router with Dual SIM and backup across wired, Wi‑Fi and cellular networks.
• Five Ethernet ports, RS232/RS485 serial ports and four configurable DIO for flexible integration.
• Advanced VPN support, firewall and access control for secure and protected communications.
• Remote management via InConnect and InHand Device Manager cloud platforms for centralized monitoring.
• Rugged fanless metal housing with EMC certifications and wide temperature range for industrial use.

The IR315 router seamlessly fits into Telestar industrial networking solutions together with industrial switches and routers available on the shop, enabling end‑to‑end OT networks from field devices to the cloud.
