PN/PN Couplers Helmholz 700-158-3PN02 Profinet V2

PN/PN Couplers Helmholz 700-158-3PN02 Profinet V2

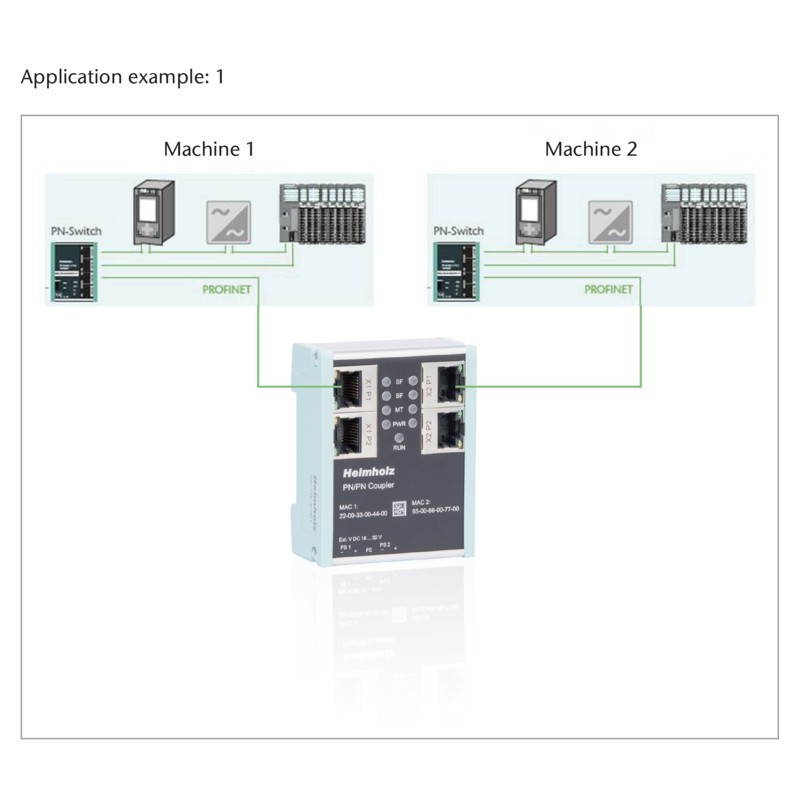

The PN/PN Couplers V2 Helmholz 700-158-3PN02 enables a simple and straightforward connection between two separate PROFINET networks, allowing reliable and transparent data transmission between two PROFINET controllers.

Input data received on one side of the network is made available as output data on the other side, and the I/O data transfer takes place live and as fast as possible without additional handling blocks, ensuring high availability even in demanding applications.

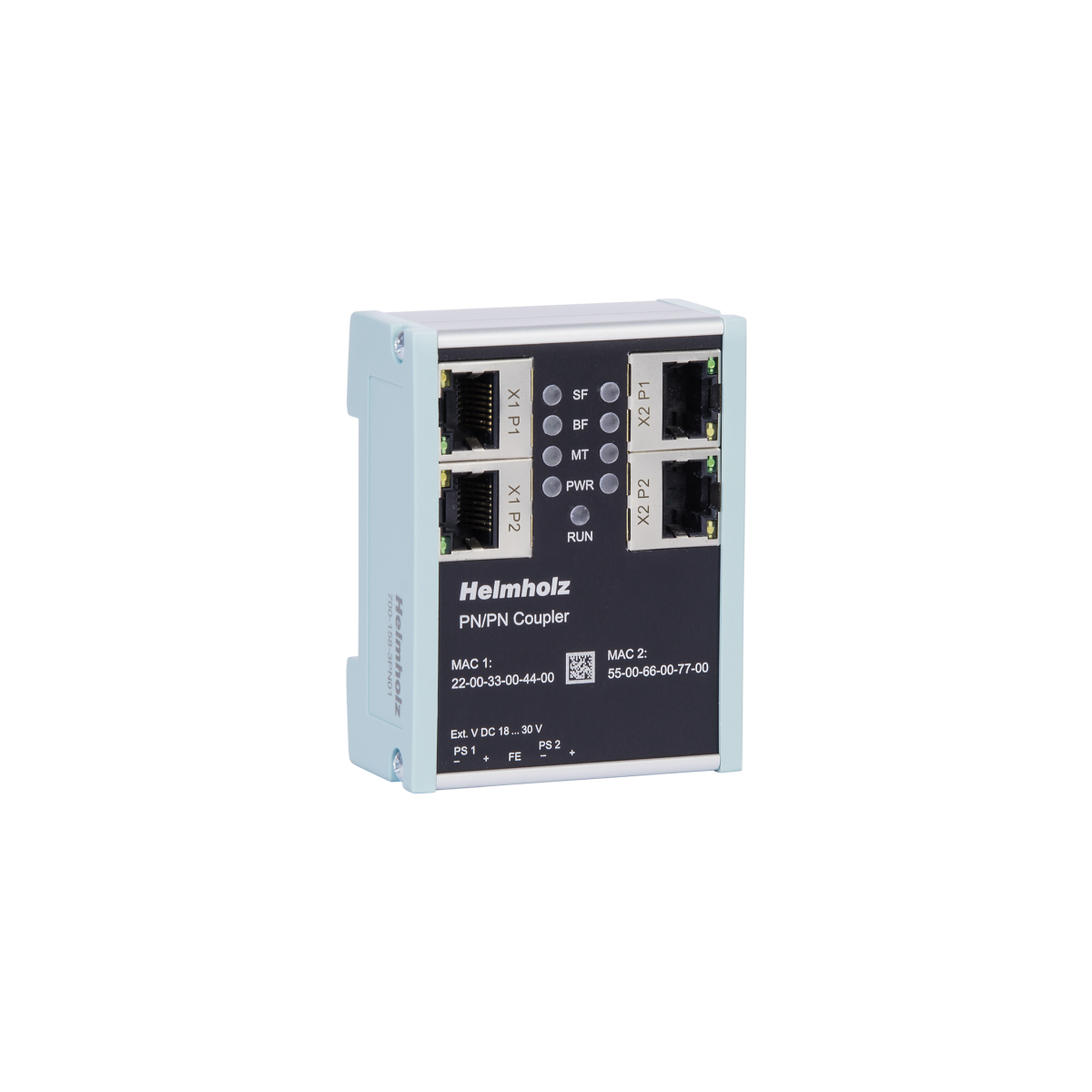

With its very compact DIN rail design, redundant power supply and galvanic isolation of the networks, the PN/PN Coupler V2 Helmholz is ideal to link and integrate separate PROFINET segments in industrial automation systems.

• Very compact design for DIN rail mounting.
• Exchange of up to 1024 bytes of I/O data between PROFINET networks.
• Redundant power supply for higher system availability.
• Galvanic isolation of the networks for improved safety and EMC.
• Configuration only via GSDML file, no additional software required.
• No influence on the opposite side in case of bus system failure.
• PROFINET transmission rate of 100 Mbps full duplex.

Do you need advice on the PN/PN Couplers V2 Helmholz or other gateways and network couplers? Contact us via the dedicated form to get support from the Telestar team.
