Fanless industrial box PC JL-00-6310-5 with PoE
Fanless industrial box PC JL-00-6310-5 with PoE
1360,95 €
Tax excl.
€1,660.36 Iva incl.
Reference TBJL0063105460Q
Delivered in 2/3 working days
Easy and free returns, within 14 days
Easy and free returns, within 14 days
Terms and conditions
Shipping Policies
Legal notes
FAQ

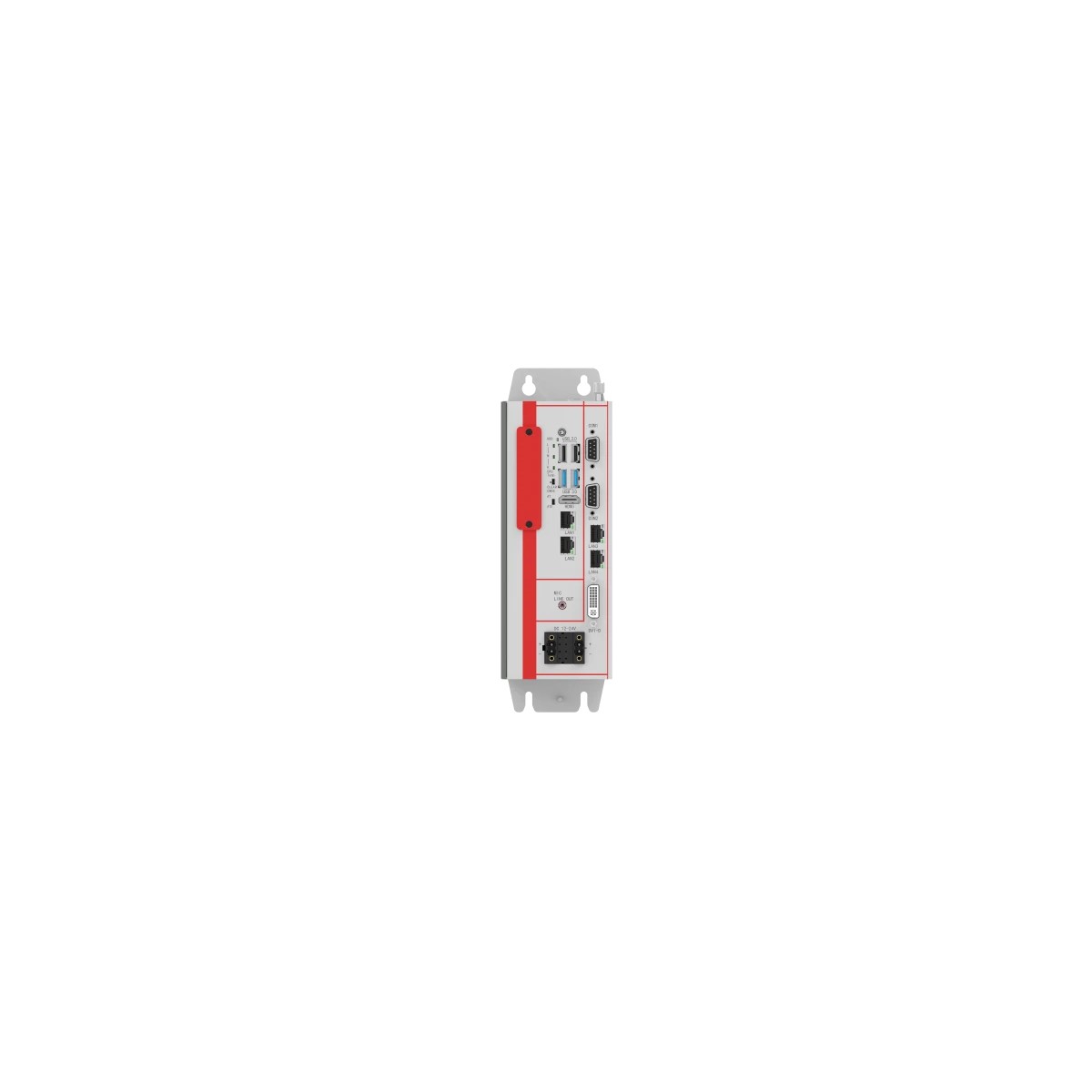

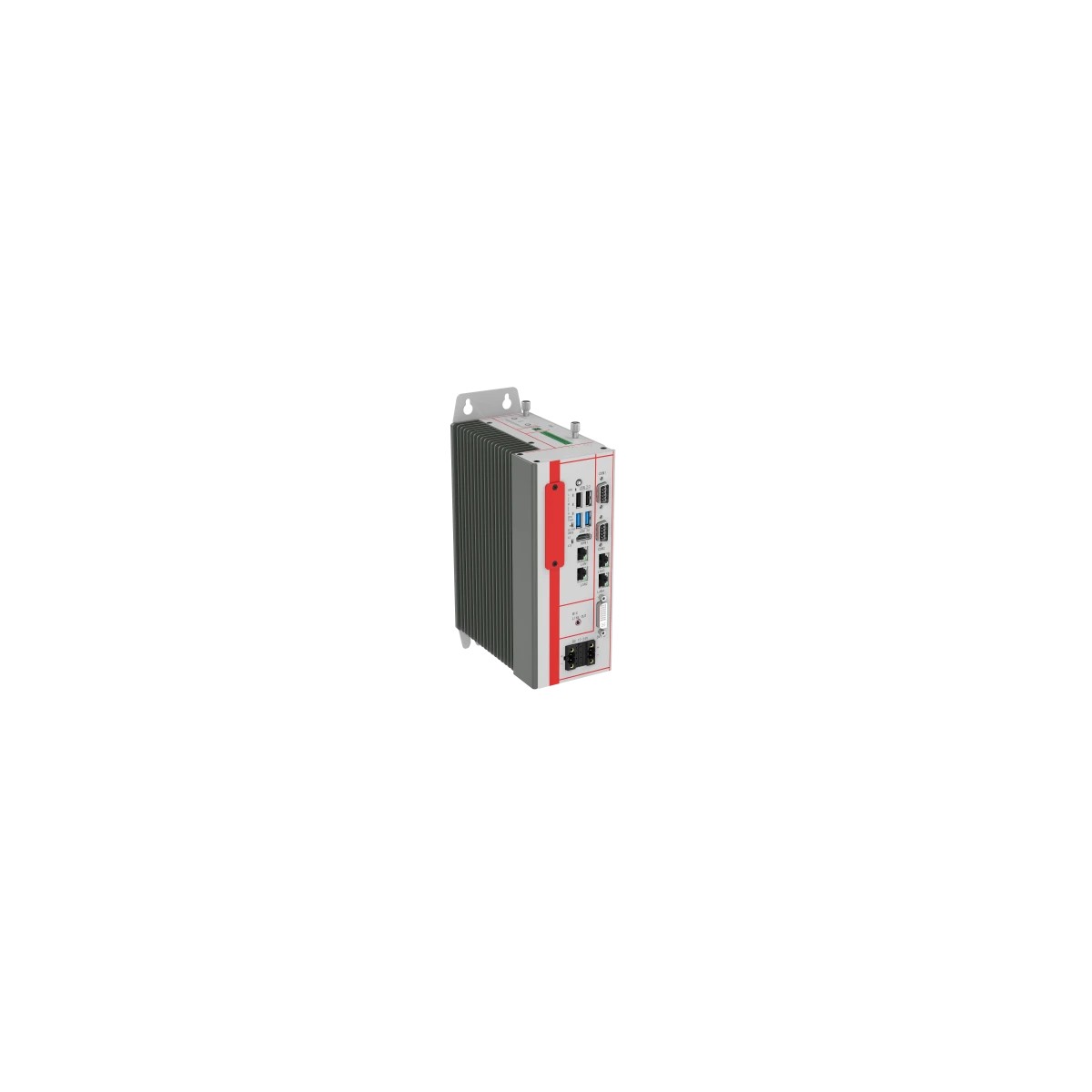

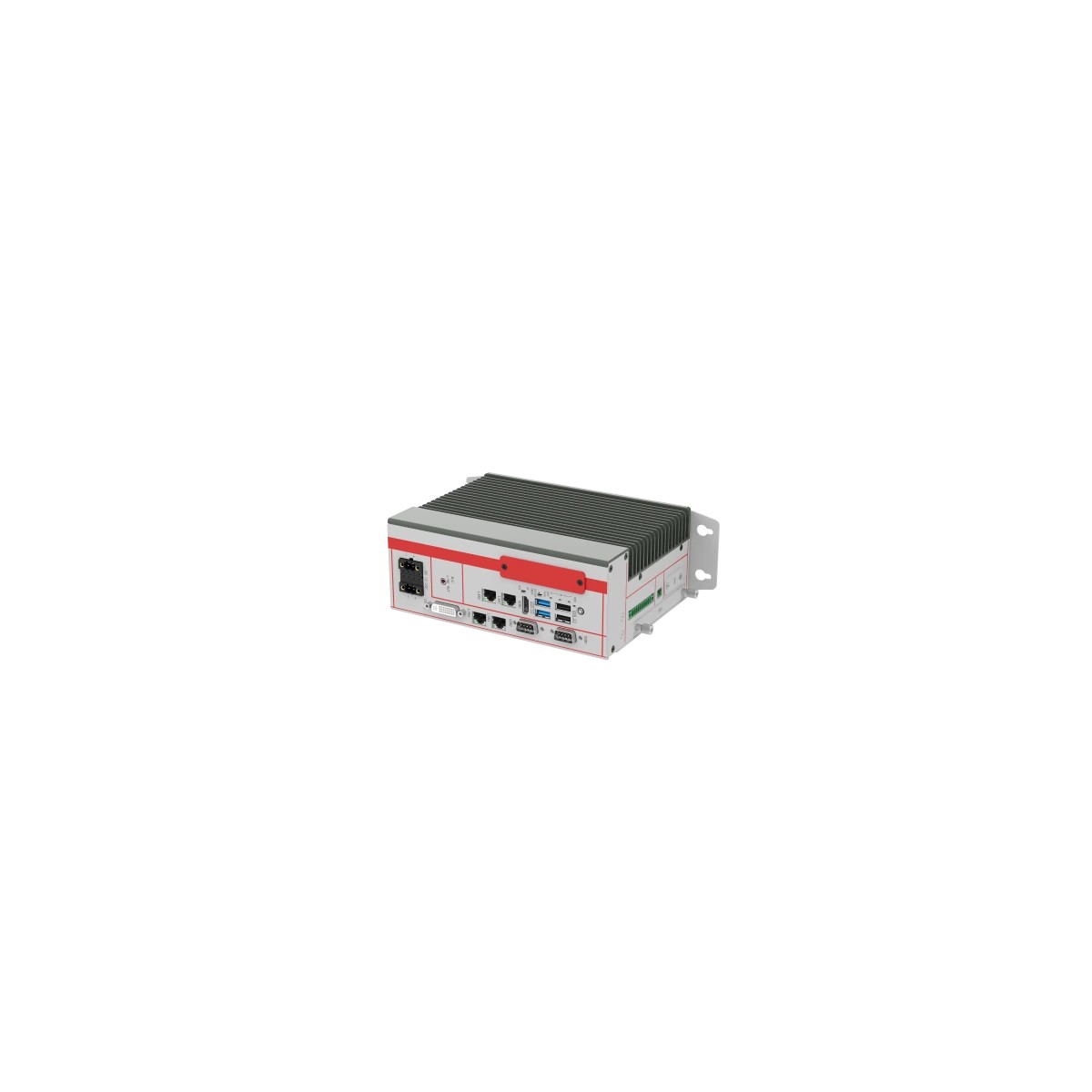

Fanless industrial box PC JL-00-6310-5 with PoE
Fanless industrial box PC JL-00-6310-5 featuring Intel Core i5-8265U CPU, four PoE ports, isolated digital I/O and removable storage, ideal for automation, IP video surveillance and IoT edge applications. [web:78][web:79]
Main features
- JL-00-6310 fanless industrial box PC family for continuous industrial use. [web:79]
- Compact steel/aluminium housing resistant to shocks and vibrations. [web:79]
- Easy to install and maintain, reducing downtime. [web:79]
- Vertical wall mounting and electrical cabinet book‑type mounting. [web:78][web:88]
- Intel Core i5-8265U quad‑core 1.6 GHz low‑power processor. [web:78]
- Removable 2.5" HDD/SSD and mSATA slot for OS and data. [web:78][web:79]
- One miniPCIe slot for communication expansion modules. [web:79]
- Expandable with Wi‑Fi, 4G/LTE, GPS and CAN bus options. [web:79][web:82]
- Four Ethernet PoE ports to power and connect IP cameras or field devices. [web:78][web:82]
- 8 isolated digital I/O lines for safe on/off signal handling. [web:82]
- Intelligent, quiet and dust‑resistant temperature control fan. [web:79]
- Extended operating temperature range from -20 °C to +60 °C. [web:79][web:82]
- Dual 12–24 VDC power terminal block for redundancy and safety. [web:79][web:82]
Technical specifications
- CPU: Intel Core i5-8265U quad‑core 1.6 GHz. [web:78]
- RAM: up to 16 GB DDR4 (depending on configuration). [web:78]
- Storage: 1 x 2.5" removable SATA + 1 x mSATA. [web:78][web:79]
- Network: 4 x Ethernet PoE (4 x ETH). [web:78][web:82]
- Digital I/O: 8 isolated digital I/O. [web:82]
- Expansion: 1 x miniPCIe (Wi‑Fi/4G/LTE/GPS/CAN). [web:79][web:82]
- Mounting: vertical wall and electrical cabinet installation. [web:78][web:88]
- Power input: dual 12–24 VDC terminal. [web:79][web:82]
- Operating temperature: -20 °C to +60 °C. [web:79][web:82]
Typical applications
- Industrial automation and machine cabinet control. [web:78][web:86]
- IP video surveillance systems powered via PoE. [web:78][web:82]
- IoT edge gateway, data logger and compact HMI/SCADA systems. [web:79][web:83]
User benefits
- Reduced cabling and external power supplies thanks to integrated PoE ports. [web:78][web:82]
- Enhanced reliability with fanless design, robust enclosure and extended temperature range. [web:79][web:82]
- Fast cabinet installation and easy maintenance with removable drive and vertical design. [web:78][web:79]
Need support or a tailored configuration?
Get in touch with the Telestar team to receive technical advice on your JL-00-6310-5 industrial box PC.
Contact us for info and quotation
TBJL0063105460Q
1 Items
- Potenza mototrre
- 12-24 VDC
- Ethernet ports number:
- 4 X ETH
- Serial ports number:
- 2 x RS232/485
- Numero I/O digitali:
- 8 x Digital I/O
- Processor
- Core i5-8265U Quad-core 1
- Mounting
- Libro
- Usb ports:
- 2 x USB 2.0 - 2 x USB 3.0
- Video outputs
- 1 x DVI-D - 1 x HDMI
- Expansions
- 1 x miniPCIe
- Temperature range
- from -20 to +60
- Configurable
- Yes
