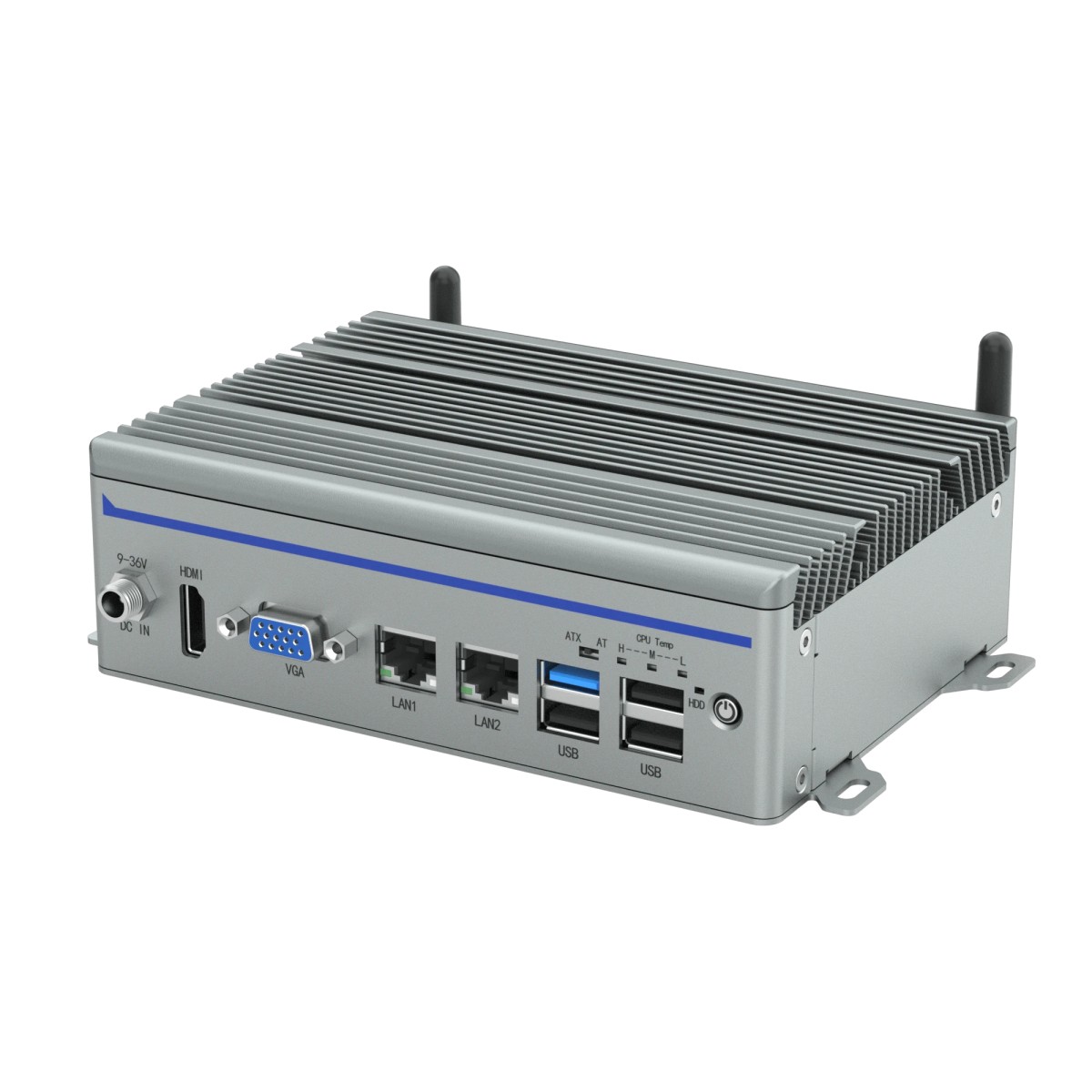

fanless industrial box pc jp-00-2604-c

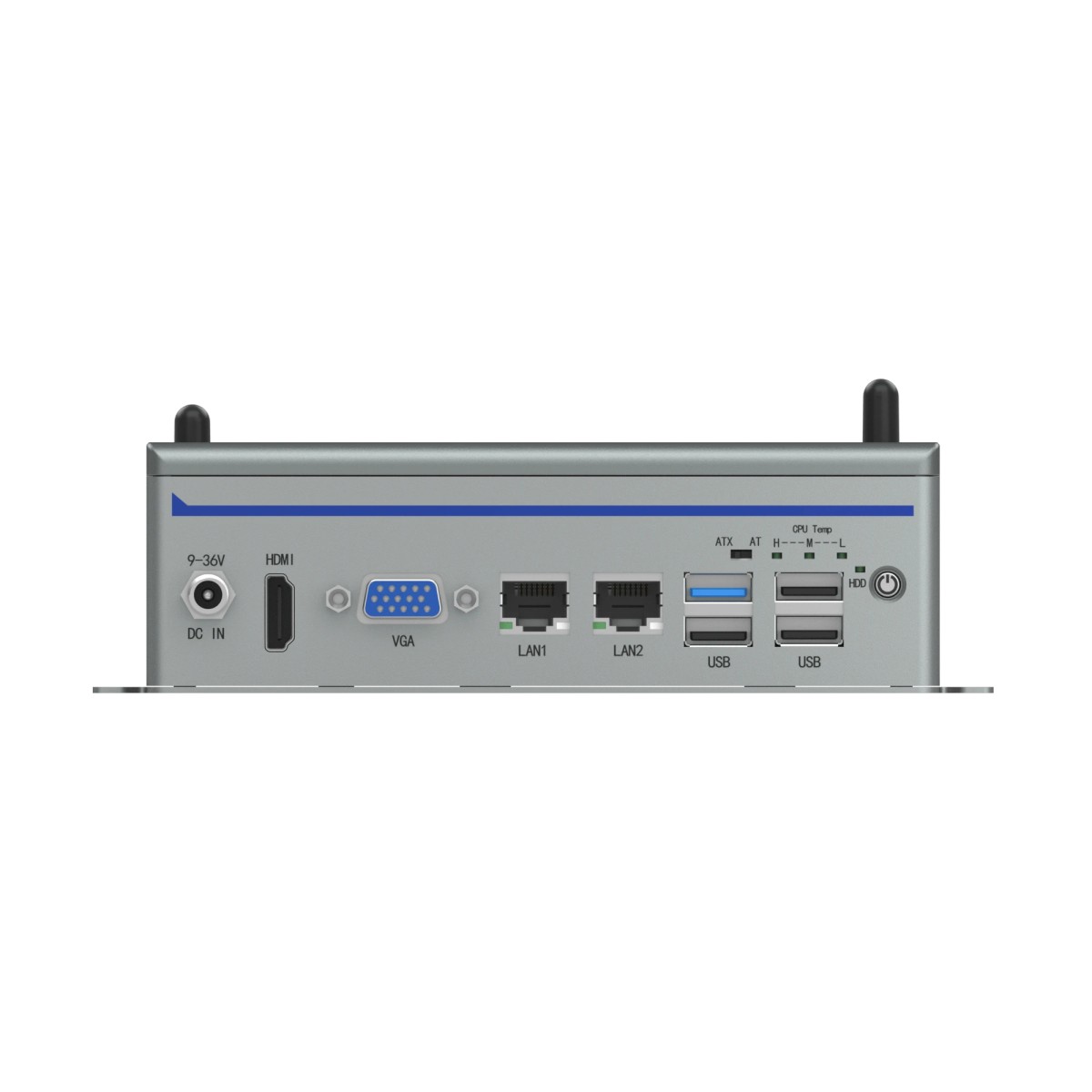

fanless industrial box pc front view

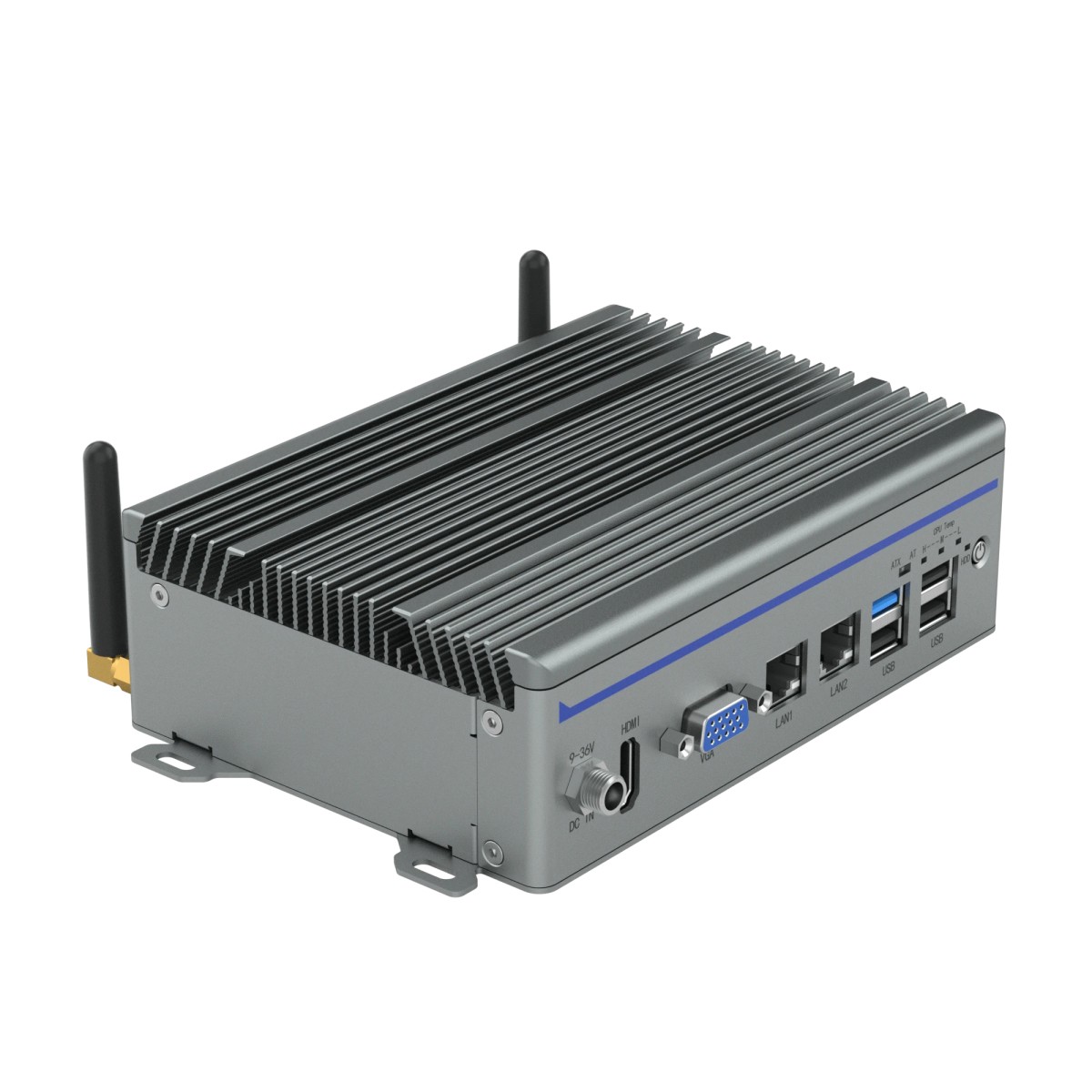

fanless industrial box pc ethernet serial ports

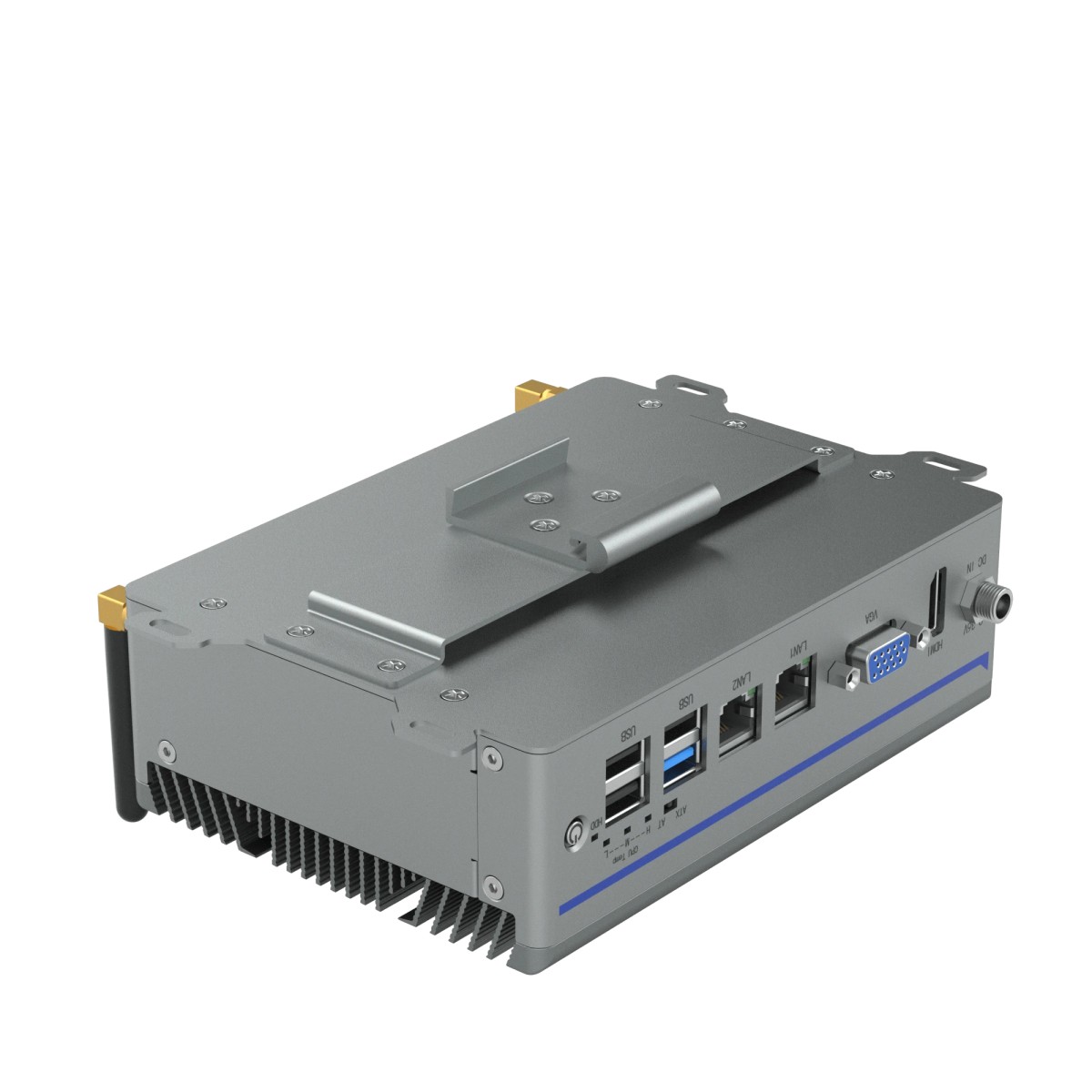

Fanless industrial box PC JP-00-2604-C cabinet
fanless industrial box pc jp-00-2604-c
fanless industrial box pc front view
fanless industrial box pc ethernet serial ports
Fanless industrial box PC JP-00-2604-C cabinet
Fanless industrial box PC JP-00-2604-C for electrical cabinet
501,35 €
Tax excl.

€611.65 Iva incl.

Reference TBJP002604C460P

Delivered in 2/3 working days
Easy and free returns, within 14 days

RAM
PC storage

Terms and conditions

Shipping Policies

Legal notes

FAQ

Fanless industrial box PC JP-00-2604-C for electrical cabinet

Fanless industrial box PC JP-00-2604-C with Intel Celeron J1900 quad‑core processor, dual video output and rich I/O, designed for automation and IoT applications in harsh industrial environments.

Main features

  • JP-00-2604-C fanless industrial box PC family for continuous industrial use.
  • Steel/aluminium housing resistant to shock and vibration.
  • Scalable and expandable system for OEM projects and retrofits.
  • Wall mounting or DIN‑rail mounting inside electrical cabinets.
  • Intel Celeron J1900 quad‑core 2 GHz low‑power CPU.
  • Two independent video outputs (1 x VGA, 1 x HDMI).
  • 9–36 VDC power input with M8 jack connector.

Technical specifications

  • Power input: 9–36 VDC, M8 jack.
  • Ethernet ports: 2 x Ethernet.
  • Serial ports: 2 x RS232/485.
  • Digital I/O: 8 x digital I/O.
  • CPU: Intel Celeron J1900 quad‑core 2 GHz.
  • Mounting: wall or DIN‑rail in cabinet.
  • USB ports: 3 x USB 2.0, 1 x USB 3.0.
  • Video outputs: 1 x VGA, 1 x HDMI.
  • Expansion: 2 x PCIe slots.
  • Operating temperature: -20 °C to +65 °C.
  • Operating system: Windows 10 IoT Enterprise 2019 LTSC High End 64 bit.
  • Customizable: yes, with tailored hardware and software options.

Typical applications

  • Machine and production line control and supervision.
  • IoT gateway and data logging for industrial plants.
  • Light HMI, compact SCADA and edge computing solutions.

User benefits

  • Higher reliability thanks to fanless design and robust metal enclosure.
  • Flexible installation in cabinets or on walls with wide voltage input.
  • Lower maintenance costs and easy integration with existing field buses.

Need support or a tailored configuration?

Get in touch with the Telestar team to receive technical advice on your JP-00-2604-C industrial box PC.

Contact us for info and quotation
TBJP002604C460P
Potenza mototrre
9-36 VDC
Ethernet ports number:
2 X ETH
Serial ports number:
2 x RS232/485
Numero I/O digitali:
8 x Digital I/O
Processor
Celeron J1900 Quad-core 2 Ghz
Mounting
DIN Rail Installation or Wall Mounting
Usb ports:
3 x USB 2.0 - 1 x USB 3.0
Video outputs
1 x VGA - 1 x HDMI
Expansions
2 x PCIe
Temperature range
from -20 to +65
Operating system
Windows 10 IoT Enterprise 2019 LTSC High End 64 bit
Configurable
Yes

Download

Datasheet JP-00-2604-C

Datasheet JP-00-2604-C, Telestar. it
