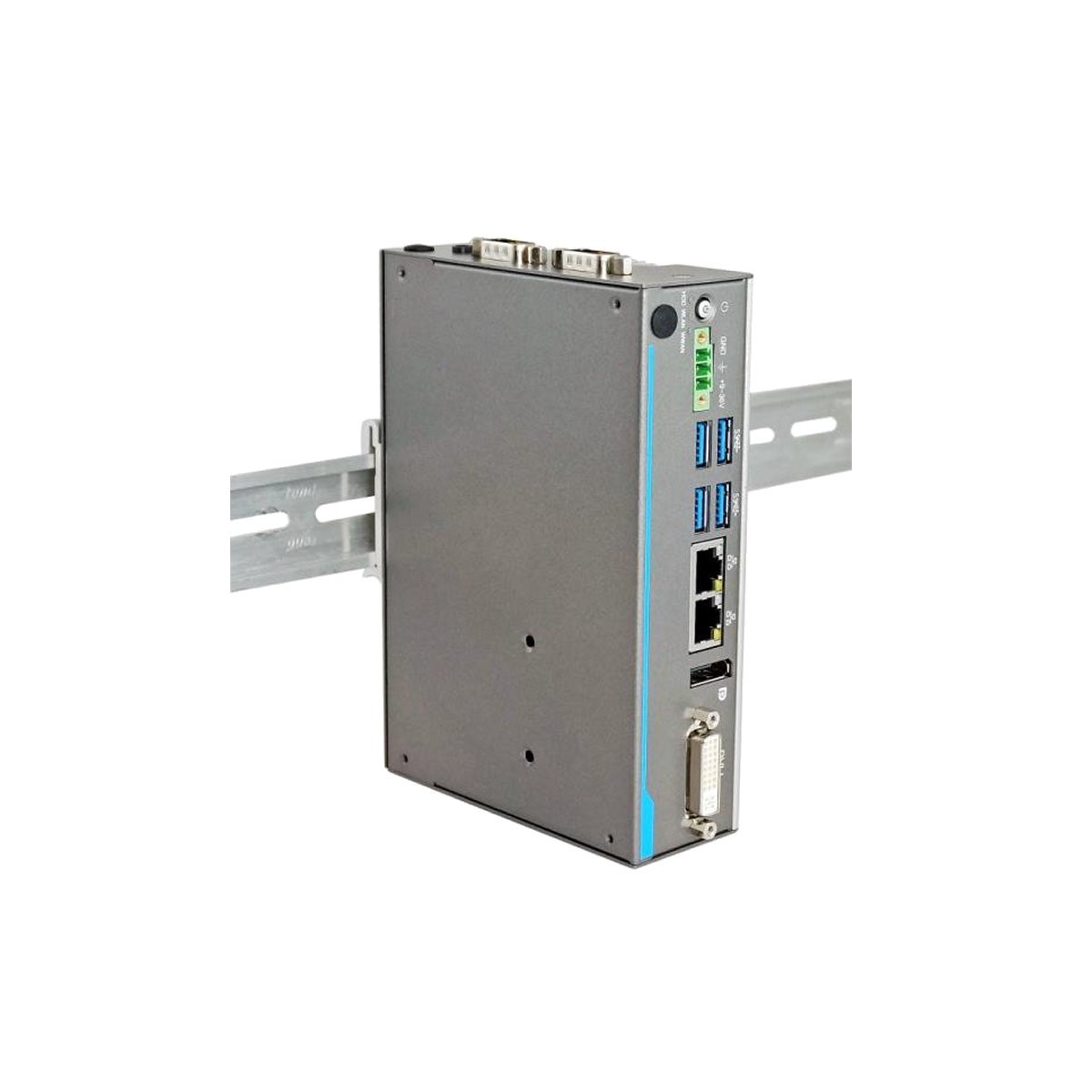

Telestar fanless industrial box PC IL-00-AG10-P

Telestar fanless industrial box PC IL-00-AG10-P

Fanless industrial box PC for panels and IoT

The fanless industrial box PC Telestar IL-00-AG10-P, part of the IL-00-AG/AT family, is designed for automation, remote control and industrial IoT applications in harsh environments, where compact size, robustness and continuous fanless operation are required. [web:173]

Its compact steel/aluminium housing is resistant to shock and vibration and is suitable for DIN-rail or wall mounting inside electrical panels, making installation and maintenance fast and straightforward. [web:173]

Main hardware features

• Housing: compact steel/aluminium chassis, shock and vibration resistant
• Mounting: DIN-rail or wall mounting inside electrical cabinets
• CPU: Intel Pentium N4200 quad-core (7th generation), suitable for control and data acquisition tasks [web:166]
• Power input: 9–36 VDC box PC for flexible integration on machines and vehicles
• Temperature range: family wide range -40 °C to +70 °C, model IL-00-AG10-P up to -20/+60 °C [web:173]

Interfaces and expansion

• Ethernet ports: 2 x ETH for factory networks and field devices
• Serial ports: 2 x RS232/485 for PLCs, drives and serial instruments
• Digital I/O: option with 4 DI / 4 DO for discrete signals
• USB ports: 4 x USB 3.0 for peripherals and external storage
• Video outputs: 1 x DVI-I and 1 x DisplayPort for industrial monitors
• Expansion: 1 x mini PCIe for Wi-Fi / 4G / LTE / GPS or fieldbus / I/O modules

IoT gateway and security options

• Available with TPM 2.0 for secure industrial IoT and edge applications
• Expandable with Wi-Fi/4G/LTE/GPS modules to enable remote connectivity and tracking

Typical applications

This industrial IoT gateway PC is ideal for:

• Industrial automation and machine control
• IoT gateway and edge data collection from sensors and PLCs
• Edge computing and HMI/SCADA supervision in the field

For detailed datasheets and custom configurations of the Telestar IL-00-AG/AT fanless industrial box PC family, visit the Telestar IPC website:

Telestar fanless industrial and embedded PCs
