Interface card PCIe Molex APP-ETH-PCIE

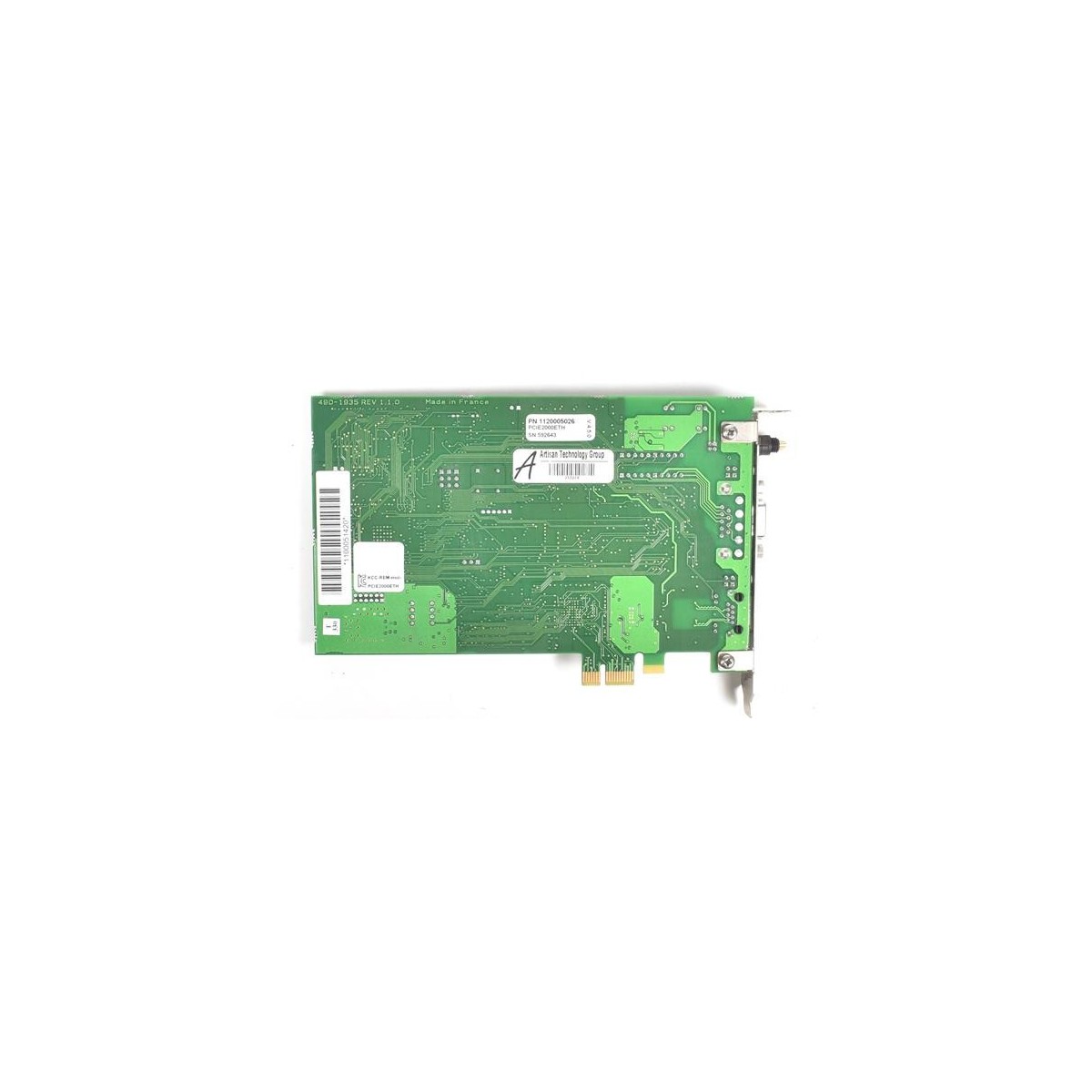

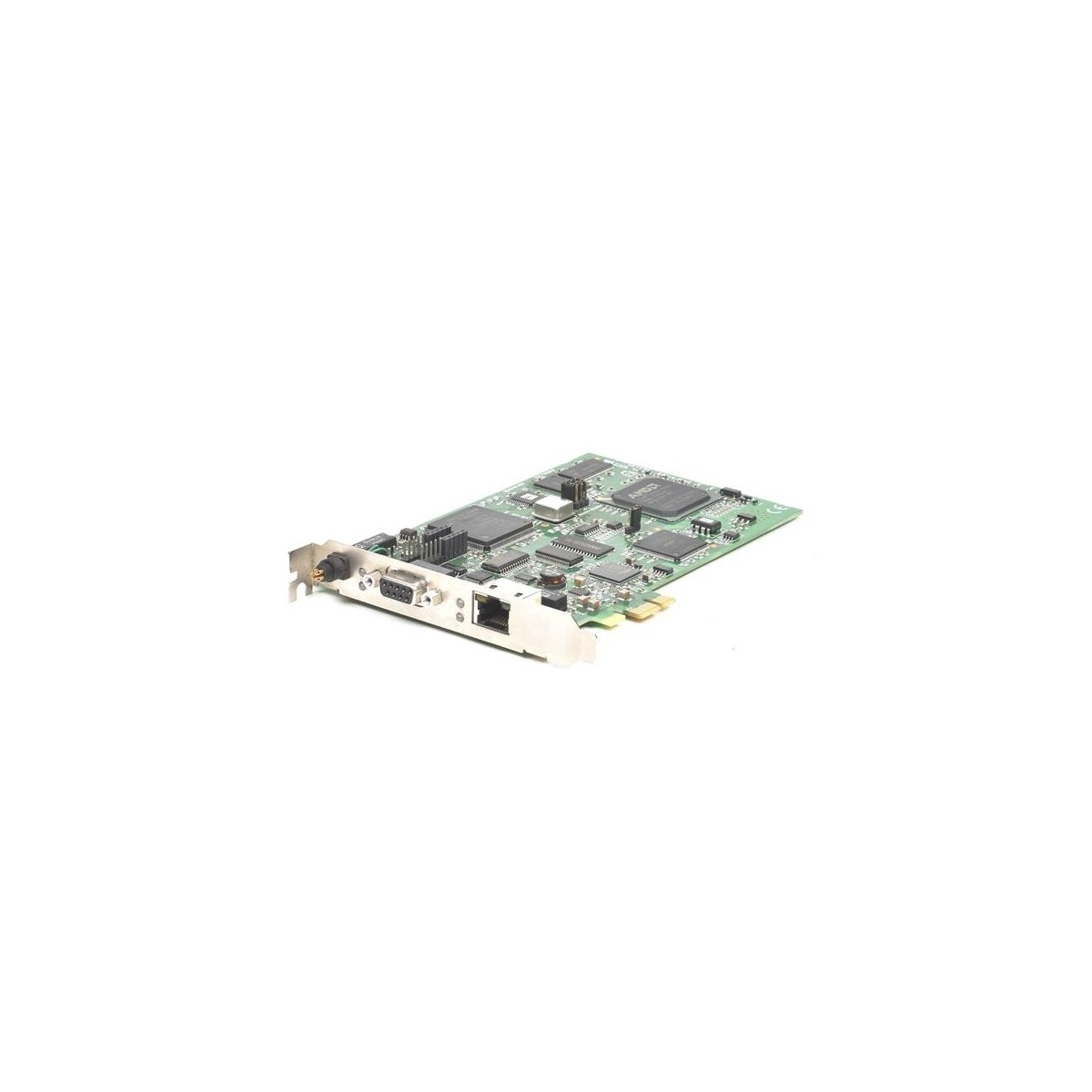

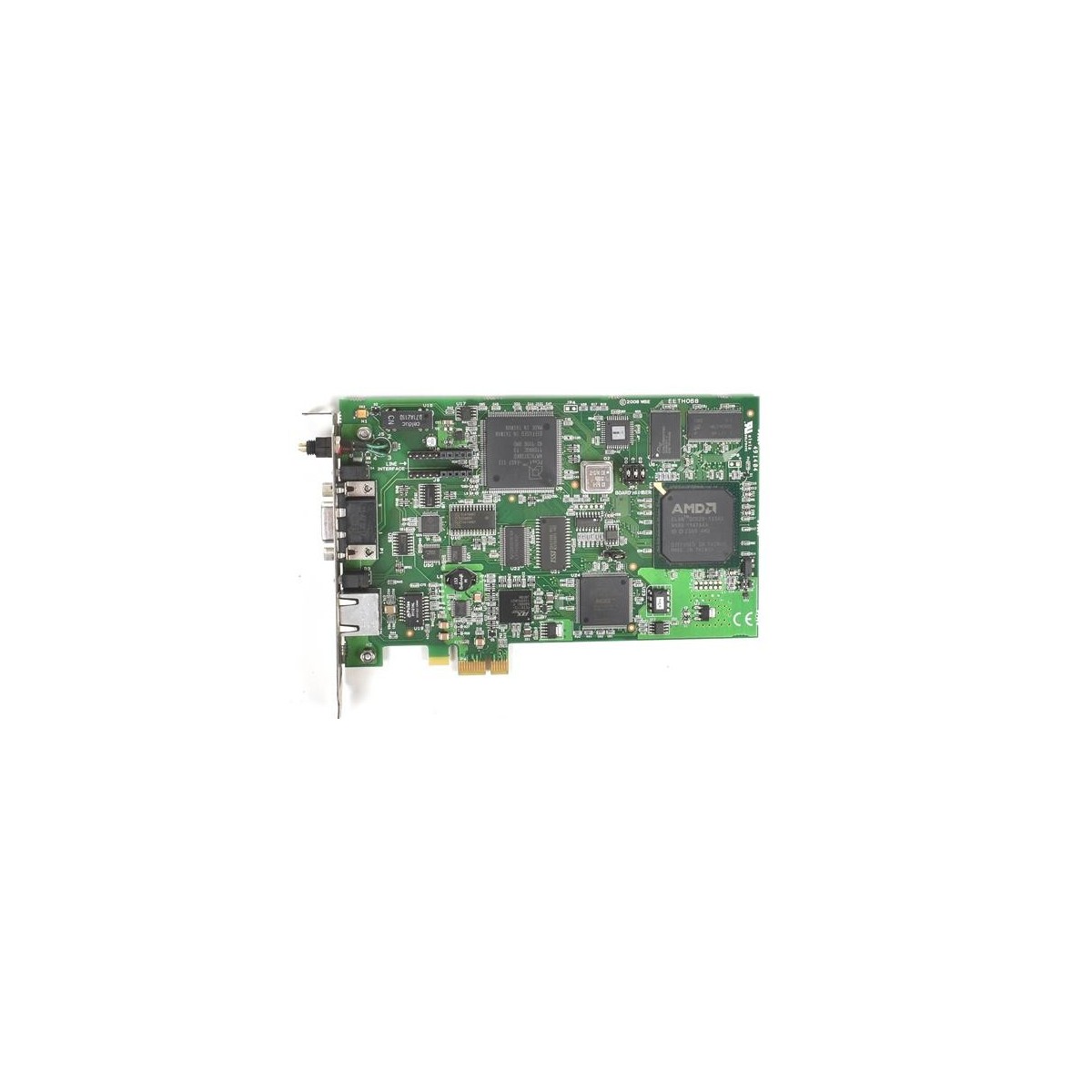

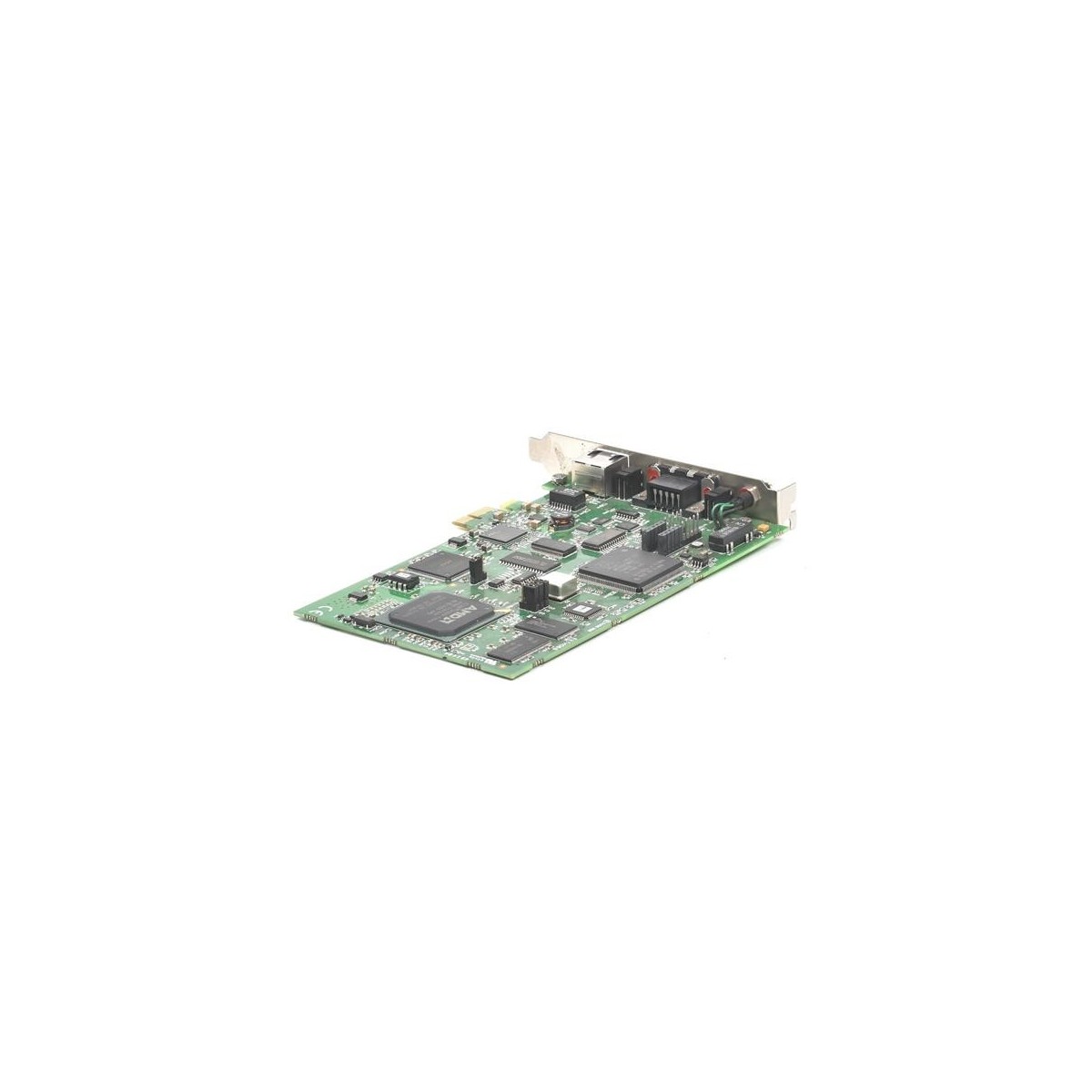

Molex APP-ETH-PCIE – PCI Express Industrial Ethernet Network Interface Card (P/N 1120005026)

Product Description:
The Molex APP-ETH-PCIE (PCIE2000ETH) is a high-performance industrial network interface card designed for HMI, SCADA, MES, and custom control applications. Equipped with an onboard processor, it handles all Ethernet TCP/IP communication protocols independently from the PC’s CPU, ensuring fast and reliable performance even in demanding industrial environments.

Key Features:

• Bus Format: PCI Express x1

• Ethernet Port: 1 RJ45 port (10/100 Mbps, auto-negotiating) with 4 status LEDs (Rx, Tx, Link, 10/100)

• Onboard Processor: AMD SC520

• Memory: 16 MB SDRAM, 4 MB Flash

• OS Compatibility: Windows 8, 7, Vista, Server 2012/2008/2003 (32/64-bit)

• Supported Protocols: Ethernet TCP/IP (Client/Server), Modbus TCP, Siemens Industrial Ethernet, Omron FINS, Allen-Bradley EtherNet/IP, and more

• Included Tools: Configuration console, diagnostic tools, OPC Server (DA v3.0/v2.05), development libraries (C/C++, VB.Net, C#, LabVIEW)

Benefits:

• Fast, reliable industrial communication

• Ideal for SCADA/HMI environments handling large volumes of I/O data

• Multi-protocol support with flexible configuration

• Certified for CE, RoHS, OPC, PCI Express compliance

Typical Applications:

• Plant supervision and monitoring

• Process data acquisition on HMI panels

• Building automation (HVAC, fire detection, access control)

• Test benches and simulations for industrial prototypes
