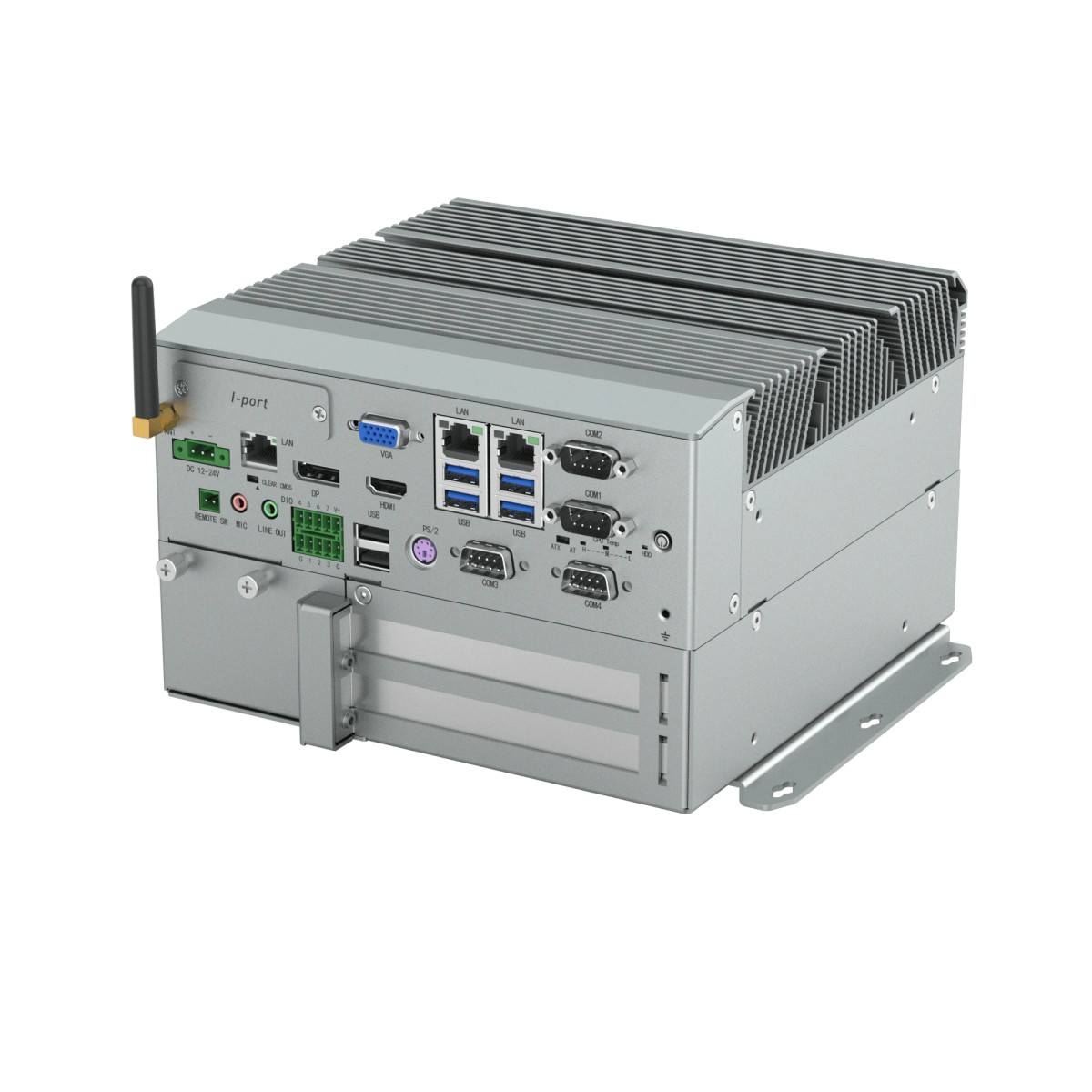

Fanless industrial box PC JL-02-380S-3 for electrical cabinet

Fanless industrial box PC JL-02-380S-3 with Intel Core i3-6100U processor, three independent video outputs, 12–24 VDC power input and rich I/O for automation and IoT gateway applications. [web:21][web:89]

Main features

  • JL‑xx‑380x fanless industrial box PC family for 24/7 operation. [web:21]

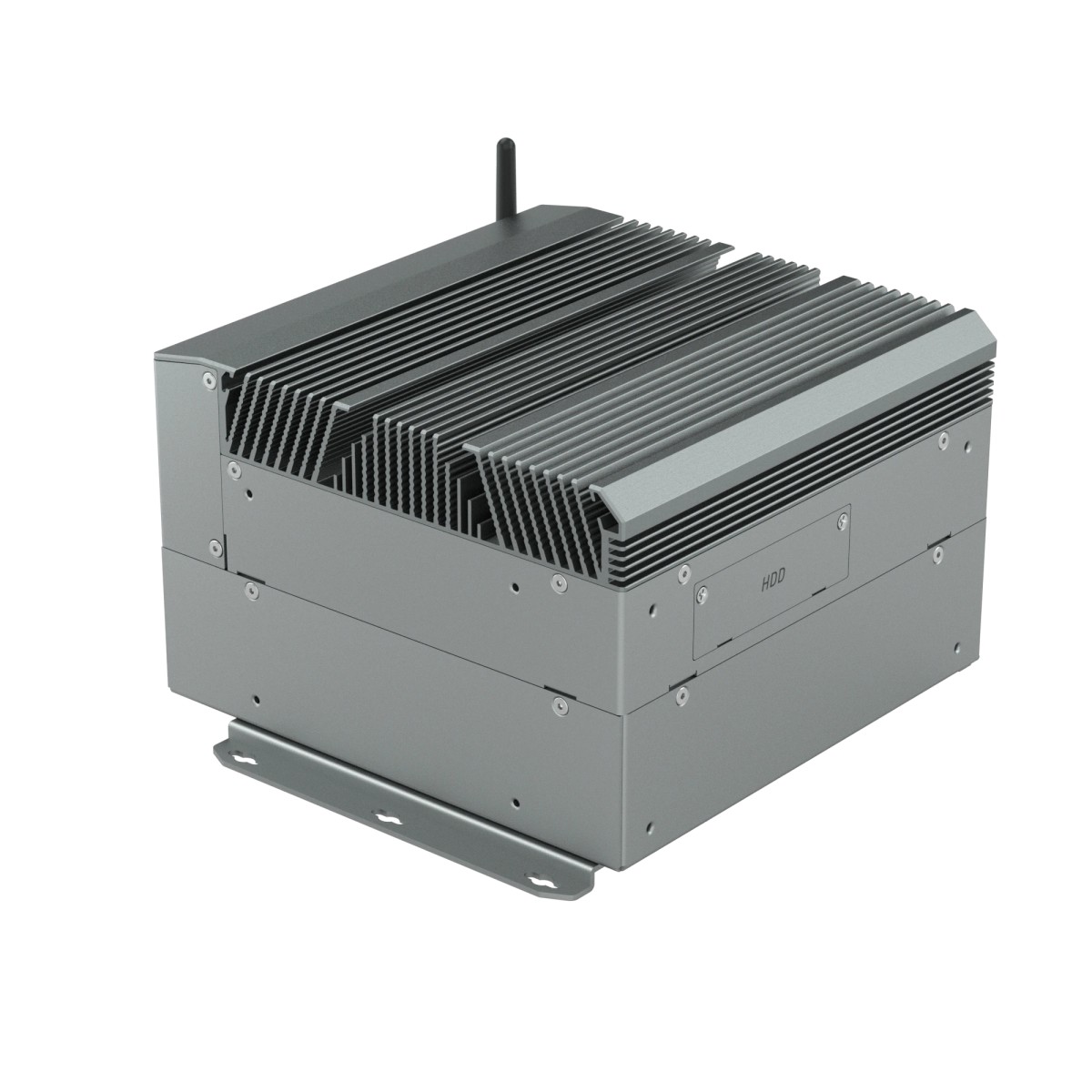

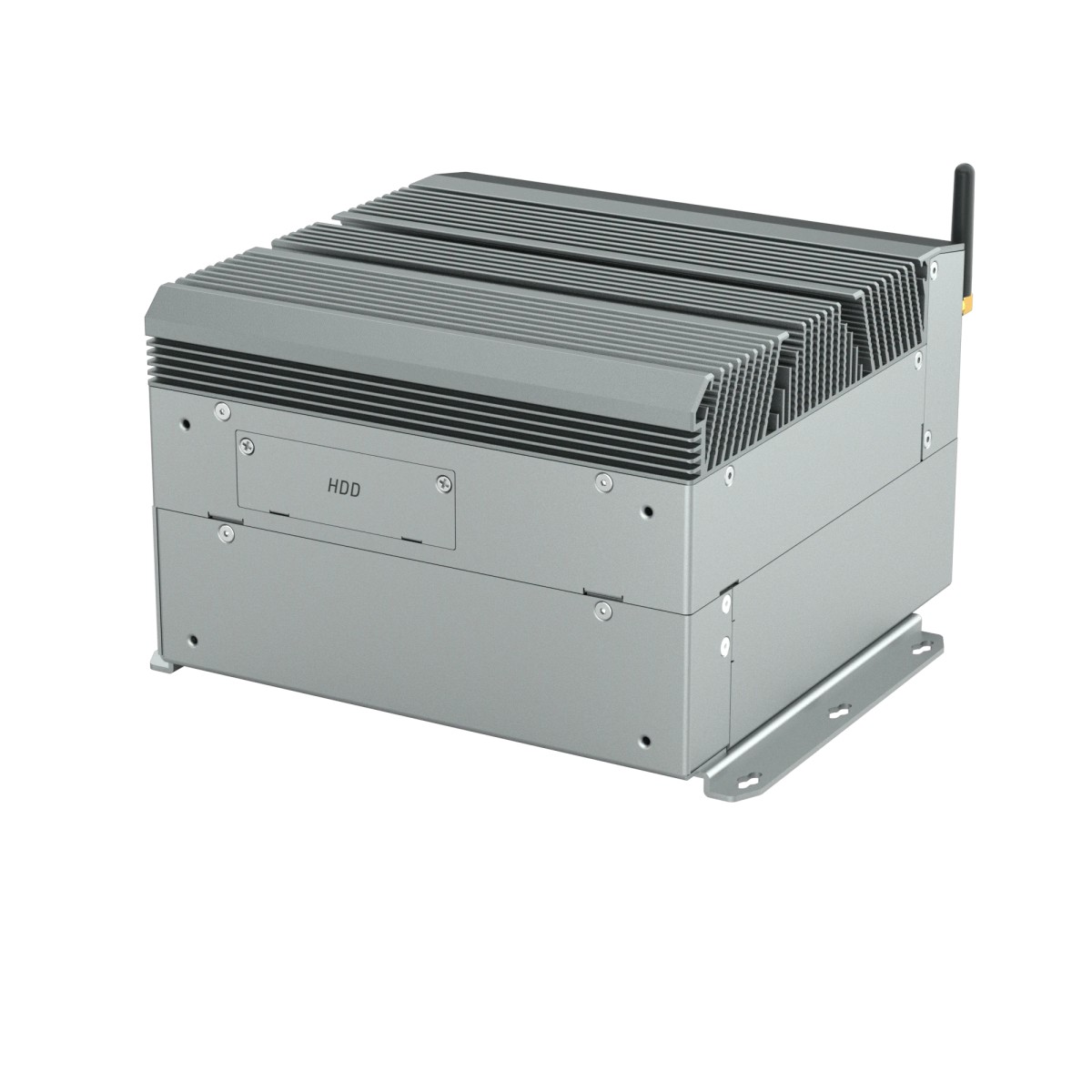

  • Steel/aluminium chassis resistant to shock and vibration. [web:21]
  • Easy to install and maintain, ideal for panel retrofits. [web:21][web:53]
  • Scalable and expandable system with excellent price/performance ratio. [web:21]
  • Wall or DIN‑rail mounting inside electrical panels. [web:21][web:89]
  • Intel Core i3‑6100U dual‑core 2.3 GHz low‑power CPU. [web:21][web:89]

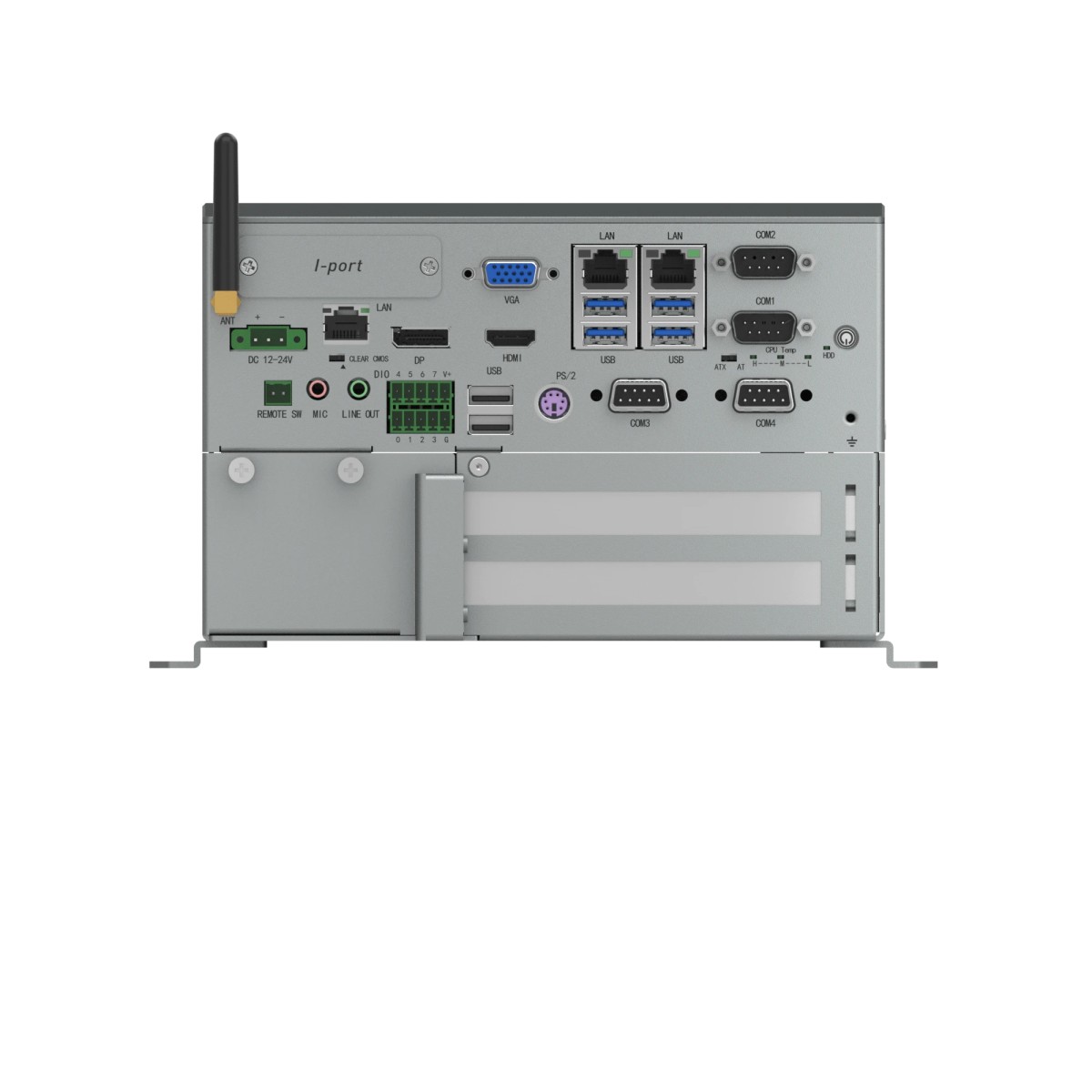

  • Three independent video outputs (VGA, HDMI, DisplayPort). [web:21]
  • 12–24 VDC power input for direct integration into machines and cabinets. [web:21][web:53]

Technical specifications

  • CPU: Intel Core i3‑6100U dual‑core 2.3 GHz. [web:21][web:89]
  • RAM: up to 16 GB DDR4. [web:21][web:89]
  • Drives: 1 x 2.5" SATA + 1 x mSATA. [web:21][web:89]
  • Network: 3 x Gigabit Ethernet ports. [web:21]
  • Serial: 2 x RS232 + 2 x RS232/485. [web:21]
  • USB: 3 x USB 2.0 + 4 x USB 3.0. [web:21]
  • Video: 1 x VGA, 1 x HDMI, 1 x DisplayPort. [web:21]
  • Expansion: 2 x PCIe + 1 x miniPCIe. [web:21]
  • Digital I/O: 8 x digital I/O. [web:21]
  • Power: 12–24 VDC input. [web:21]
  • Operating temperature: -20 °C to +70 °C. [web:21]

Typical applications

  • Industrial machine and production line automation and control. [web:21]
  • IoT gateway and data collection from plants and sensors. [web:21]
  • Compact HMI/SCADA systems mounted in electrical cabinets. [web:21][web:6]

User benefits

  • Higher reliability with fanless design and rugged metal enclosure. [web:21]
  • Flexible wall or DIN‑rail mounting with 12–24 VDC input. [web:21][web:89]
  • Expandable I/O and performance via PCIe and mSATA options. [web:21]

Need support or a tailored configuration?

Get in touch with the Telestar team to receive technical advice on your JL-02-380S-3 industrial box PC.

Contact us for info and quotation
TBJL02380S5860Q
1 Items
Potenza mototrre
12-24 VDC
Ethernet ports number:
3 X ETH
Serial ports number:
2x RS2323 - 2 x RS232/485
Numero I/O digitali:
8 x Digital I/O
Processor
Core i3-6100U Dual-core 2
Core i5-6200U Dual-core 2
Mounting
DIN Rail Installation or Wall Mounting
Usb ports:
3 x USB 2.0 - 4 x USB 3.0
Video outputs
1 x VGA - 1 x HDMI - 1 x Display Port
Expansions
2 x PCIe - 1 x miniPCIe
Temperature range
from -20 to +70
Configurable
Yes
